TTArtisan AF 14mm F3.5 Pancake Lens Released for Fujifilm X Mount
The TTArtisan AF 14mm F3.5 lens, which was initially launched exclusively for Sony E-mount, is now also available for Fujifilm X-mount cameras. On Fujifilm's APS-C bodies like the new X-E5, X-M5 and X-T50, the lens offers a 21mm full-frame equivalent field of view, making it a great ultra-wide option for landscape, street, or travel photography.
TTArtisan AF 14mm F3.5 on camera
While TTArtisan markets this as a "pancake" lens, at Camera Decision, we reserve that label for lenses that measure 30mm or less in total height. The X-mount version is officially listed at 31mm, but that figure likely excludes the full thickness of the metal lens mount. By our measurements, it's closer to 36mm, so it doesn’t quite make the cut as a true pancake in our book.
TTArtisan AF 14mm F3.5 Key Specs
- 14mm Focal Range
- F3.5 Max Aperture
- Filter Thread: 39mm
- Max Format: APS-C / DX
- Fujifilm X Mount
- 8 Elements in 7 Groups
- 1 high-index, 2 ED (extra-low dispersion), 2 aspherical
- 7-blade Diaphragm
- Weight: 98g
- Diameter x Length: 62mm x 36
- Min Focus Distance: 0.25m
- Max Magnification: 0.13x
- Read the Review
- Check Price at: Amazon, B&H Photo
Features and Optical Formula

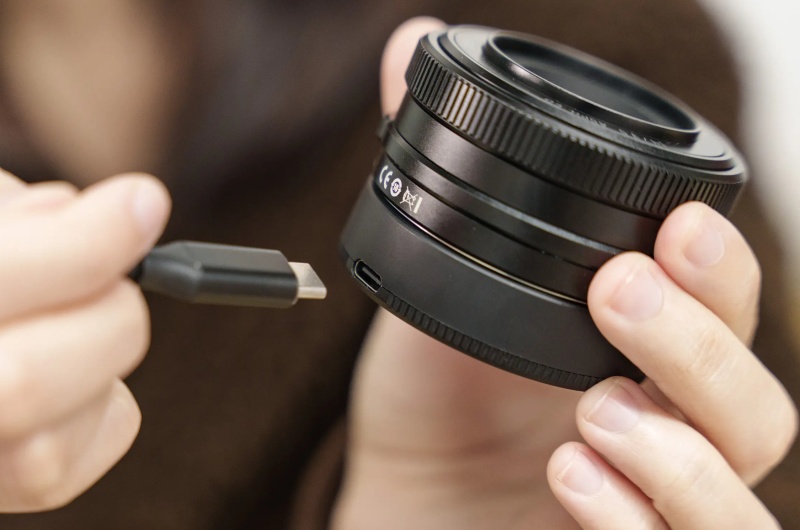

USB-C port on the lens cap is not our favorite design choice
The lens features minimal controls; a manual focus ring and a clicked aperture ring with third-stop detents are the only physical controls. It accepts 39mm filters and comes with a matching compact lens hood. There is a built-in USB-C port on the rear lens cap that allows firmware updates, but we woudl prefer to have it on the lens body as chances of losing the rear lens cap is high!
TTArtisan AF 14mm F3.5 Optical Structure
TTArtisan AF 14mm F3.5's optical formula consists of 8 elements in 7 groups . The following special elements are used in this design:
- 1 high-index
- 2 ED (extra-low dispersion)
- 2 aspherical
MTF Chart
Price and Availability
The X-mount of the TTArtisan AF 14mm F3.5 lens is priced at $129 and is available to order at AMAZON and TTArtisan Store.
What's in the Box
TTArtisan AF 14mm F3.5 in hand
