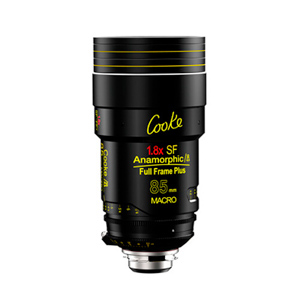

Cooke 85mm Anamorphic/i 1.8x Full Frame Plus Macro is an Anamorphic Telephoto Prime type cinema lens that is compatible with ARRI PL Mount cameras.
Focal Range
The Cooke 85mm Anamorphic/i 1.8x Full Frame Plus Macro has a fixed focal length of 85mm. This lens' max format coverage is Full Frame (24 x 36 mm and provides and Image circle of 46.3mm.
Horizontal Angle of View
The horizontal angle of view of the Cooke 85mm Anamorphic/i 1.8x Full Frame Plus Macro is Full Frame: 45.
Minimum Focus Distance
The minimum focus distance of the Cooke 85mm Anamorphic/i 1.8x Full Frame Plus Macro is 7 inch from the Front of Lens.
Connectivity
Connectivity provided via 1 x 4-Pin LEMO Data.
Gear MOD & Pitch
- Focus: 0.8 MOD / 32 Pitch
- Iris / Aperture: 0.8 MOD / 32 Pitch
Rotation Angle
- Focus Ring Rotation: 270�°
- Iris / Aperture Ring Rotation: 90�°
Physical Specs
The Cooke 85mm Anamorphic/i 1.8x Full Frame Plus Macro weighs 5216.4g / 11.50lbs . The front diameter of the lens is 136 mm / 5.4 inch.
