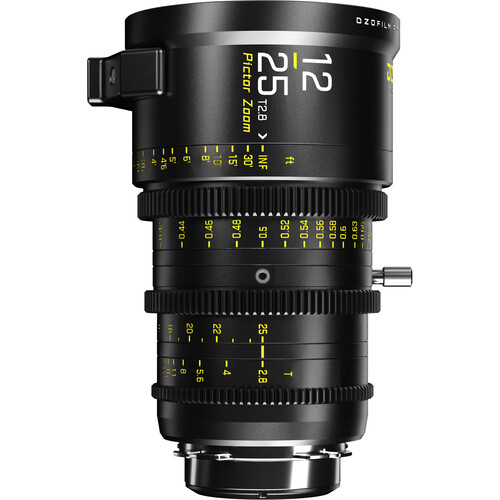

DZOFilm Pictor 12-25mm T2.8 Super35 Parfocal is a Wideangle Zoom type cinema lens that is compatible with Canon EF and ARRI PL Mount cameras.
DZOFilm Pictor 12-25mm T2.8 Super35 Parfocal is a member of DZOFilm's Pictor series of lenses. Below you can see the latest lenses in this series.
Focal Range
DZOFilm Pictor 12-25mm T2.8 Super35 Parfocal has a versatile focal coverage of 12 to 25mm and 2.08x zoom ratio. This lens' max format coverage is Super35/APS-C and provides and Image circle of 31.1mm.
Minimum Focus Distance
The minimum focus distance of the DZOFilm Pictor 12-25mm T2.8 Super35 Parfocal is 1.3 foot.
Lens Support
Heavy cinema lenses put a lot of stress on the camera mount and your rig so the lens support on the lens provides another point to mount the lens and distribute the weight more evenly. The DZOFilm Pictor 12-25mm T2.8 Super35 Parfocal has a Lens Support Foot to support the weight.
Gear MOD & Pitch
- Focus: 0.8 MOD / 32 Pitch
- Iris / Aperture: 0.8 MOD / 32 Pitch
- Zoom: 0.8 MOD / 32 Pitch
Rotation Angle
- Focus Ring Rotation: 270°
- Iris / Aperture Ring Rotation: 64.4°
- Zoom Ring Rotation: 100°
Optical Design
The optical construction of the DZOFilm Pictor 12-25mm T2.8 Super35 Parfocal consists of 21 Elements in 15 Groups. The diaphragm / iris has 16 blades .
Physical Specs
The DZOFilm Pictor 12-25mm T2.8 Super35 Parfocal weighs 1600.0g / 3.50lbs . The front diameter of the lens is 95 mm / 3.7 inch.
