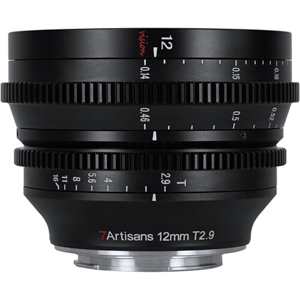

7artisans Photoelectric 12mm T2.9 Vision is a Wideangle Prime type cinema lens that is compatible with Sony E, Leica L, Micro Four Thirds, Canon RF, Fujifilm X and Nikon Z Mount cameras.
7artisans Photoelectric 12mm T2.9 Vision is a member of 7artisans's Photoelectric series of lenses. Below you can see the latest lenses in this series.
Photoelectric Series Lenses
Focal Range
The 7artisans Photoelectric 12mm T2.9 Vision has a fixed focal length of 12mm. This lens' max format coverage is Super35/APS-C. Due to the crop ratio of 1.5x, when it is mounted on an Super35/APS-C sensor camera, the effective focal length of the lens will be approximately 18mm.
Horizontal Angle of View
The horizontal angle of view of the 7artisans Photoelectric 12mm T2.9 Vision is APS-C (1.5x): 100.
Minimum Focus Distance
The minimum focus distance of the 7artisans Photoelectric 12mm T2.9 Vision is 5.5 inch.
Gear MOD & Pitch
- Focus: 0.8 MOD / 32 Pitch
- Iris / Aperture: 0.8 MOD / 32 Pitch
Rotation Angle
- Focus Ring Rotation: 270°
Optical Design
The optical construction of the 7artisans Photoelectric 12mm T2.9 Vision consists of 12 Elements in 10 Groups. The diaphragm / iris has 9 blades .
Physical Specs
The 7artisans Photoelectric 12mm T2.9 Vision weighs 601.0g / 1.33lbs . The lens has the external dimensions (W X H) of 3.5 x 2.8 inches. The front diameter of the lens is 89 mm / 3.5 inch.
