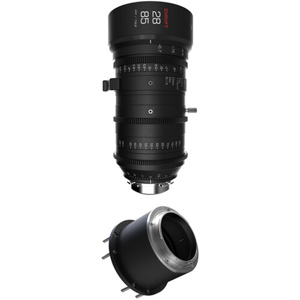

CHIOPT XTREME ZOOM 28-85mm T3.2 Compact is a Wideangle Zoom type cinema lens with Full Frame size sensor coverage that is available in Canon EF, ARRI PL and Sony E Mounts.
Here are some common uses cases for Wideangle Zoom Cinema Lenses such as the CHIOPT XTREME ZOOM 28-85mm T3.2 Compact:
- Establishing wide shots of landscapes or cityscapes.
- Group scenes indoors with multiple characters.
- Tight spaces needing depth, like hallways or small rooms.
- Emphasizing scale with dramatic perspective.
- Dynamic tracking shots in large spaces.
CHIOPT XTREME ZOOM 28-85mm T3.2 Compact is a member of CHIOPT's XTREME series of lenses. Below you can see the latest lenses in this series.
Focal Range
CHIOPT XTREME ZOOM 28-85mm T3.2 Compact has a versatile focal coverage of 28 to 85mm and 3.00x zoom ratio. This lens' max format coverage is Full Frame and provides and Image circle of 46.0mm.
Horizontal Angle of View
The horizontal angle of view of the CHIOPT XTREME ZOOM 28-85mm T3.2 Compact is Full Frame: 75 to 21.
Diagonal Angle of View
The diagonal angle of view of the CHIOPT XTREME ZOOM 28-85mm T3.2 Compact is Full Frame: 65 to 17.5 .
Minimum Focus Distance
The minimum focus distance of the CHIOPT XTREME ZOOM 28-85mm T3.2 Compact is 15.7 inch from the Front of Lens.
Gear MOD & Pitch
- Focus: 0.8 MOD / 32 Pitch
Rotation Angle
- Focus Ring Rotation: 288�°
- Iris / Aperture Ring Rotation: 84�°
- Zoom Ring Rotation: 96�°
Physical Specs
The CHIOPT XTREME ZOOM 28-85mm T3.2 Compact weighs 2721.6g / 6.00lbs . The lens has the external dimensions (W X H) of 4.5 x 9.0 inches. The front diameter of the lens is 114 mm / 4.5 inch.
