7artisans 24mm-96mm T2.9 S35 Cine Zoom Lens
7artisans released a new 24mm-96mm T2.9 S35 Cine Zoom Lens with PL and EF mounts. However, the PL mount version is adaptable to E, Z, RF, and L-Mount cameras with the use of a specially designed adapter ring for conversion.
Focus, Zoom and Aperture Throws
Being a Super35 (S35) format lens, it covers the APS-C sensor and has an FF equivalent focal range of 36-144mm on these cameras. 7Artisans claims a parfocal design with this lens which means the focus plane doesn't change as you zoom in and out. In addition, the company also says the focus breathing is minimal thanks to careful design to satisfy video shooters' requirements.

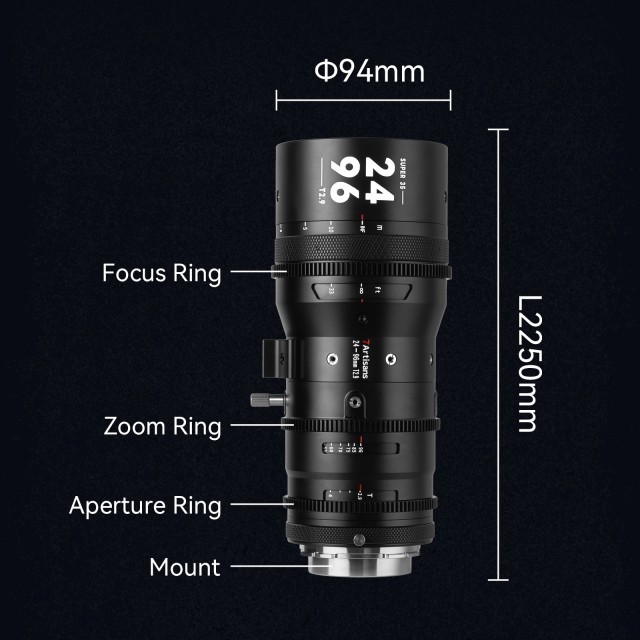

7artisans 24mm-96mm External Dimensions and Controls
7Artisans Sprite ZOOM 24–96mm T2.9 Specifications
- Model: Sprite ZOOM 24–96mm T2.9
- Frame: S35
- Focal Length: 24–96mm (Equipped with a 1.5X Teleconverter)
- Mount: EF/PL
- Aperture Range: T2.9–T22
- Maximum Image Circle: Φ31.5
- AOV (Angle of View):
- Diagonal: 66°–18°
- Horizontal: 54.5°–14.3°
- Vertical: 43°–11.1°
- Lens Construction: 21 elements in 16 groups
- Minimum Focus Distance: 1m
- Zoom Ratio: 4X
- Aperture Control: Manual (Aperture Ring Throw 90°)
- Focusing Control: Manual (Focus Ring Throw 240°)
- Zooming Control: Manual (Zoom Ring Throw 100°)
- Dimensions: Φ94mm * L2250mm (Size does not include mount)
- Aperture Blade: 13 PCS
- Filter Diameter: Φ86mm
- Gear Pitch: 0.8
- Material: Metal
- Weight: About 2.3kg
- Rear Focusing Adjustment: ±0.5mm
Price and Availability
The 7artisans 24mm-96mm T2.9 S35 Cine Zoom Lens for PL and EF mounts are available for ordering for $1,999 at 7Artisans, AVShutter, and B&H Photo.
