Fujifilm XF 16-80mm F4 R OIS WR X Mount Review

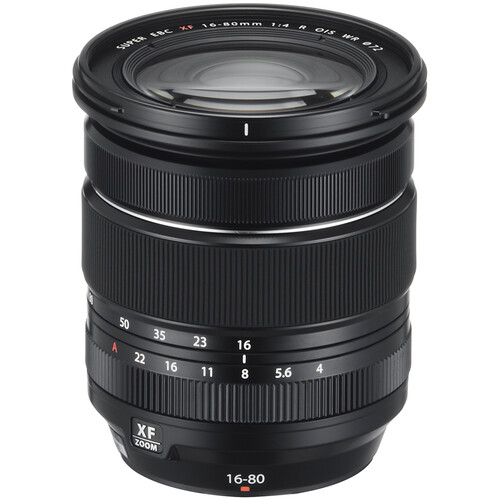

Fujifilm XF 16-80mm F4 R OIS WR

Main Features

  • 16-80mm Focal Range
  • F4 Max Aperture
  • Image Stabilization
  • Weather-sealed
  • Filter Thread: 72mm
  • Max Format: APS-C / DX
  • Fujifilm X Mount
  • Weight: 440g / 0.97 lb
  • Dimensions(øxL): 78mm x 89mm
  • Min Focus Distance: 0.35m
  • Max Magnification: 0.25x
CHECK PRICE
CHECK PRICE
Compare To
x
Add a Lens for comparison

Fujifilm XF 16-80mm F4 R OIS WR Overview


Fujifilm XF 16-80mm F4 R OIS WR is a Fixed aperture Auto Focus (AF) Standard Zoom lens with Optical Image stabilization and APS-C / DX max sensor coverage, and it is designed to be used with X Mount cameras.

What type of photography is the Fujifilm XF 16-80mm F4 R OIS WR lens good for?

The type of photography that you are planning to use the Fujifilm XF 16-80mm F4 R OIS WR is an important decision factor. Here we have evaluated its suitability to various photography scenarios:

Photography Type Suitability
Bird/WildlifeAverage
SportsGood
PortraitVery Good
TravelVery Good
StreetGood
WeddingVery Good
Walk AroundVery Good
VloggingFair
LandscapeGood
MacroAverage

Fujifilm XF 16-80mm F4 R OIS WR is a member of Fujifilm's XF F4.0 Zoom series of lenses. Below you can see the latest lenses in this series.

XF F4.0 Zoom Series Lenses in Fujifilm X Mount
Model Coverage Weight Focusing Street Price
Fujifilm XF 18-120mm F4 LM PZ WR Lens Fujifilm XF 18-120mm F4 LM PZ WR
Compare
APS-C / DX 460gr AF Amazon B&H Photo
Fujifilm XF 10-24mm F4 R OIS WR Lens Fujifilm XF 10-24mm F4 R OIS WR
Compare
APS-C / DX 385gr AF Amazon B&H Photo
Fujifilm XF 16-80mm F4 R OIS WR Lens Fujifilm XF 16-80mm F4 R OIS WR
APS-C / DX 440gr AF Amazon B&H Photo
Fujifilm XF 10-24mm F4 R OIS Lens Fujifilm XF 10-24mm F4 R OIS
Compare
APS-C / DX 410gr AF Amazon B&H Photo

Reasons to Buy Fujifilm XF 16-80mm F4 R OIS WR Lens

Here we've included a summary of the advantages and disadvantages of the Fujifilm XF 16-80mm F4 R OIS WR lens in a list form to help you determine whether it offers the features you need.

PROs
Optical Image Stabilization
Weather-sealed
Autofocus
Aperture Ring
Hood supplied
Full-time Manual Focusing
Fast Aperture at Tele end
Constant f4 aperture throughout the range
9 Diaphragm Blades for Smooth Bokeh
Report a correction

Buy Fujifilm XF 16-80mm F4 R OIS WR from Amazon or B&H PHOTO


CONs
Lens Extents while zooming


Lens Mount

Fujifilm XF 16-80mm F4 R OIS WR is compatible with cameras that have a Fujifilm X lens mount. Some of the latest released cameras that are compatible with the Fujifilm X lenses are Fujifilm X-S20, Fujifilm X-T5 and Fujifilm X-H2.

Fujifilm X-S20 with Fujifilm XF 16-80mm F4 R OIS WR Lens Size
Fujifilm X-S20 with the Fujifilm XF 16-80mm F4 R OIS WR Lens
Fujifilm X-T5 with Fujifilm XF 16-80mm F4 R OIS WR Lens Size
Fujifilm X-T5 with the Fujifilm XF 16-80mm F4 R OIS WR Lens
Fujifilm X-H2 with Fujifilm XF 16-80mm F4 R OIS WR Lens Size
Fujifilm X-H2 with the Fujifilm XF 16-80mm F4 R OIS WR Lens

Size, Weight and Filter Thread

Size and weight is a very important decision factor when searching for your next lens. Fujifilm XF 16-80mm F4 R OIS WR has a maximum diameter of 78mm and total length of 89mm when not extended. It weighs 440g / 15.5 oz.

Below you can find a scaled side-by-side image of Fujifilm XF 16-80mm F4 R OIS WR and Fujifilm 18-55mm F2.8-4 R LM OIS (Fujifilm X mount) to get a better idea of how their sizes compare in real life. Check the detailed comparison of these two lenses here.

Fujifilm XF 16-80mm F4 R OIS WR vs Fujifilm 18-55mm F2.8-4 R LM OIS Lens Size Comparison
Comparison image of the Fujifilm XF 16-80mm F4 R OIS WR and the Fujifilm 18-55mm F2.8-4 R LM OIS Size and Weight

Fujifilm XF 16-80mm F4 R OIS WR has a filter thread of 72mm. Below are links to the filters that we recommend you to consider for your Fujifilm XF 16-80mm F4 R OIS WR:

  • 72mm Variable ND Lens Filters
  • 72mm Circular Polarizer Lens Filters
  • 72mm Clear Protection Lens Filters




Focal Range

Fujifilm XF 16-80mm F4 R OIS WR has a focal range of 16-80mm and 5.0X zoom ratio which has a 35mm equivalent focal range of 24-120mm when used on a APS-C / DX format camera.



Weather Sealings

The Fujifilm XF 16-80mm F4 R OIS WR is a weather-sealed lens, which provides extra protection to prevent water and dust get inside the lens and camera body under light rain, snow and wind. In order to have effective protection, you have to pair the Fujifilm XF 16-80mm F4 R OIS WR with a weather-sealed camera body such as the Fujifilm X-T5, Fujifilm X-H2 and Fujifilm X-H2S.

Optical Image Stabilization

The Fujifilm XF 16-80mm F4 R OIS WR features an optical image stabilization system which helps to reduce the blur that occurs due to shaking during hand-held shooting.

Zoom Method

Fujifilm XF 16-80mm F4 R OIS WR features Rotary (extending) zoom method where the length of the lens changes as you zoom in or out. This makes it possible to design the lens with a smaller minimum length ( generally when it is zoomed out) compared to internal zoom lenses. The disadvantages of this design are being harder to seal against dust and moisture, weight balance shifting while zooming and zoom creep in certain lenses.

Maximum Magnification Ratio

Fujifilm XF 16-80mm F4 R OIS WR has a Max Magnification Ratio of 0.25x and has a minimum focusing distance of 0.35m. For a non-macro lens, the 0.25x is considered a high magnification and will come handy for close-up shots.

Below are the 3 Standard Zoom type Fujifilm X mount lens alternatives with highest max magnification ratios:

  • Sigma 18-50mm F2.8 DC DN C: 0.36x - (Compare)
  • Fujifilm XC 15-45mm F3.5-5.6 OIS PZ: 0.24x - (Compare)
  • Tamron 17-70 F2.8 Di III-A VC: 0.21x - (Compare)

Aperture

Fujifilm XF 16-80mm F4 R OIS WR is a fixed aperture lens with a constant max aperture of f4 from 16mm all the way to the 80mm .

Focal Length Max Aperture Min Aperture
16mm F4 F22
80mm F4 F22

Optical Formula

Fujifilm XF 16-80mm F4 R OIS WR's optical formula consists of 16 elements in 12 groups . Following special elements are used in this design:

  • 1 ED
  • 3 aspherical elements

Lens Hood

Fujifilm XF 16-80mm F4 R OIS WR comes with a removable lens hood which is handy to reduce lens flare and glare in your photos.

https://cameradecision.com/lenses/img/other/Fujifilm-XF-16-80mm-F4-R-OIS-WR-hood.jpg
Fujifilm XF 16-80mm F4 R OIS WR Lens Hood


Body Colour

Fujifilm XF 16-80mm F4 R OIS WR is available in Black color.

https://cameradecision.com/lenses/img/other/Fujifilm-XF-16-80mm-F4-R-OIS-WR-withcamera.jpg
Fujifilm XF 16-80mm F4 R OIS WR Attached to a camera

Popular Comparisons of Fujifilm XF 16-80mm F4 R OIS WR

Here are the eight most popular comparisons of the Fujifilm XF 16-80mm F4 R OIS WR amongst Camera Decision readers.

Top Alternatives of Fujifilm XF 16-80mm F4 R OIS WR Lens
Model Coverage Weight Focusing Street Price
Fujifilm XF 18-55mm F2.8-4 R LM OIS Lens Fujifilm XF 18-55mm F2.8-4 R LM OIS
Compare
APS-C / DX 310 g / 0.68 lb AF Amazon B&H Photo
Tamron 17-70 F2.8 Di III-A VC RXD Lens Tamron 17-70 F2.8 Di III-A VC RXD
Compare
APS-C / DX 525 g / 1.16 lb AF Amazon B&H Photo
Fujifilm XF 18-135mm F3.5-5.6 R LM OIS WR Lens Fujifilm XF 18-135mm F3.5-5.6 R LM OIS WR
Compare
APS-C / DX 490 g / 1.08 lb AF Amazon B&H Photo
Fujifilm XF 18-120mm F4 LM PZ WR Lens Fujifilm XF 18-120mm F4 LM PZ WR
Compare
APS-C / DX 460 g / 1.01 lb AF Amazon B&H Photo
Sigma 18-50mm F2.8 DC DN Contemporary Lens Sigma 18-50mm F2.8 DC DN Contemporary
Compare
APS-C / DX 285 g / 0.63 lb AF Amazon B&H Photo
Fujifilm XF 16-55mm F2.8 R LM WR Lens Fujifilm XF 16-55mm F2.8 R LM WR
Compare
APS-C / DX 655 g / 1.44 lb AF Amazon B&H Photo
Fujifilm XF 10-24mm F4 R OIS Lens Fujifilm XF 10-24mm F4 R OIS
Compare
APS-C / DX 410 g / 0.90 lb AF Amazon B&H Photo
Tamron 18-300mm F3.5-6.3 Di III-A VC VXD Lens Tamron 18-300mm F3.5-6.3 Di III-A VC VXD
Compare
APS-C / DX 620 g / 1.36 lb AF Amazon B&H Photo


**This post contains affiliate links, and I will be compensated if you make a purchase after clicking through my links. As an Amazon Associate, I earn from qualifying purchases.

Fujifilm XF 16-80mm F4 R OIS WR Alternatives in Fujifilm X Mount
Model Coverage Weight Focusing Street Price
Tamron 17-70 F2.8 Di III-A VC RXD Lens Tamron 17-70 F2.8 Di III-A VC RXD
Compare
APS-C / DX 525 g / 1.16 lb AF Amazon B&H Photo

Related Blog Posts

Nikon Z 135mm F1.8 Plena Lens in Short Supply
Nikon Z Mount Lens Roadmap Updated, One More f1.2 Lens to Come
Nikon Zf Size with 30 different Z-Mount Lenses Attached: Most Compact to Largest
Nikon 135mm F1.8 Plena vs 58mm F0.95 Noct Lens Sizes Comparison
Nikon Z 135mm F1.8 S Plena vs Canon RF 135mm F1.8 L IS USM vs Sony FE 135mm F1.8 GM Lenses Size And Feature Comparison
A 500mm F6.3 Full frame lens for only $329?
Tamron 17-50mm f/4 Di III VXD Lens Available for Pre-Order. And Yes, It is a Full-frame Lens
Fujifilm GF 110mm F5.6 T/S, 30mm F5.6 T/S and 55mm F1.7 Lenses: Medium Format comes with a Price tag

Fujifilm XF 16-80mm F4 R OIS WR Detailed Specifications


General
Brand Fujifilm
Lens Type Zoom
Lens Type Standard Zoom
Lens Mount Fujifilm X
Max Format APS-C / DX
Focal Range 16-80mm
Image Stabilization Yes
Colour Black
Zoom Method Rotary (extending)
Power Zoom No
Zoom Lock No Zoom
Zoom Ratio 5.0X
APERTURE
Max Aperture F4
Min Aperture F22
Aperture Ring Yes
Diaphragm Blades 9
Optics
Optical Elements 16
Optical Groups 12
Special Elements 1 ED + 3 aspherical elements

FOCUSING
Min Focus Distance 0.35m
Max Magnification 0.25X
Autofocus Yes
AF Motor Type unknown
Full Time Manual Yes
Focus Method Internal
Distance Scale No
DoF Scale No
PHYSICAL SPECS
Weight 440g
Diameter 78mm
Length 89mm
Materials Magnesium alloy
Weather Sealing Yes
Filter Thread 72mm
Filter Notes -
Hood Supplied Yes
Tripod Collar No
Report a Correction
Frequently Asked Questions about Fujifilm XF 16-80mm F4 R OIS WR
is the Fujifilm XF 16-80mm F4 R OIS WR a Weather-sealed lens?
What is the Minimum Focusing Distance of Fujifilm XF 16-80mm F4 R OIS WR
is the Fujifilm XF 16-80mm F4 R OIS WR an Autofocus (AF) lens?
What is the Filter Thread Size of Fujifilm XF 16-80mm F4 R OIS WR
Does Fujifilm XF 16-80mm F4 R OIS WR have Image Stabilization?
Does Fujifilm XF 16-80mm F4 R OIS WR have Aperture Ring?
What is the Maximum Magnification Ratio of Fujifilm XF 16-80mm F4 R OIS WR
