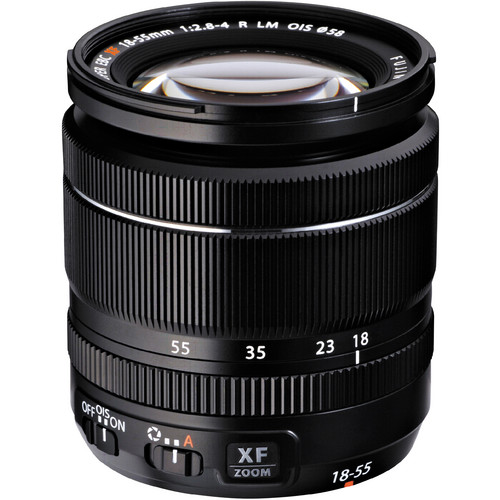

Fujifilm XF 18-55mm F2.8-4 R LM OIS Review

Fujifilm XF 18-55mm F2.8-4 R LM OIS

Main Features

  • 18-55mm Focal Range
  • F2.8 - F4.0 Max Aperture
  • Image Stabilization
  • Filter Thread: 58mm
  • Max Format: APS-C / DX
  • Fujifilm X Mount
  • Weight: 310g.
  • Diameter: 65mm
  • Length: 70mm
  • Min Focus Distance:0.4m
  • Max Magnification:0.15x
CHECK PRICE

CHECK PRICE

Compare To

x
Add a Camera for comparison

Fujifilm 18-55mm F2.8-4 R LM OIS Overview

Fujifilm 18-55mm F2.8-4 R LM OIS is an Auto Focus (AF) Standard Zoom lens with APS-C / DX max sensor coverage and it is designed to be used with Fujifilm X mount cameras.

Lens Mount

Fujifilm 18-55mm F2.8-4 R LM OIS is compatible with cameras that have Fujifilm X lens mount. Some of the latest released cameras that are compatible with the Fujifilm X lenses are Fujifilm X-H2S, Fujifilm X-T30 II and Fujifilm X-E4.

Focal Range

Fujifilm 18-55mm F2.8-4 R LM OIS has a focal range of 18-55mm and 3.1X zoom ratio which has a 35mm equivalent focal range of 27-82.5mm when used on a APS-C / DX format camera.

Optical Image Stabilization

Fujifilm 18-55mm F2.8-4 R LM OIS features an optical image stabilization system which helps to reduce the blur that occurs due to shaking during hand-held shooting.

Zoom Method

Fujifilm 18-55mm F2.8-4 R LM OIS features Rotary (extending) zoom method where the length of the lens changes as you zoom in or out. This makes it possible to design the lens with a smaller minimum length ( generally when it is zoomed out) compared to internal zoom lenses. The disadvantages of this design are being harder to seal against dust and moisture, weight balance shifting while zooming and zoom creep in certain lenses.

Maximum Magnification Ratio

Fujifilm 18-55mm F2.8-4 R LM OIS has a Max Magnification Ratio of 0.15x and has a minimum focusing distance of 0.4m. 0.15x means that the max magnification ratio is very low and not suitable even for modest close-up shots.

Aperture

Fujifilm 18-55mm F2.8-4 R LM OIS is a variable aperture lens with a max aperture of f2.8 and a minimum aperture of f22 at 18mm, and a max aperture of f4 and minimum aperture of f22 at 55mm .

Optical Formula

Fujifilm 18-55mm F2.8-4 R LM OIS's optical formula consists of 14 elements in 10 groups . Following special elements are used in this design:

  • 3 aspherical elements
  • 1 extra low dispersion element

Lens Hood

Fujifilm 18-55mm F2.8-4 R LM OIS comes with a removable lens hood which is handy to reduce lens flare and glare in your photos.

Popular Comparisons of Fujifilm 18-55mm F2.8-4 R LM OIS

Here is the eight most popular comparisons of Fujifilm 18-55mm F2.8-4 R LM OIS amongst Camera Decision readers.

Top Alternatives of Fujifilm 18-55mm F2.8-4 R LM OIS Lens
Model Coverage Weight Focusing Street Price
Fujifilm XC 15-45mm F3.5-5.6 OIS PZ Lens Fujifilm XC 15-45mm F3.5-5.6 OIS PZ
Compare
APS-C / DX 136gr AF Amazon B&H Photo
Fujifilm XC 16-50mm F3.5-5.6 OIS Lens Fujifilm XC 16-50mm F3.5-5.6 OIS
Compare
APS-C / DX 195gr AF Amazon B&H Photo
Fujifilm XF 16-55mm F2.8 R LM WR Lens Fujifilm XF 16-55mm F2.8 R LM WR
Compare
APS-C / DX 655gr AF Amazon B&H Photo
Sigma 18-50mm F2.8 DC DN Contemporary Lens Sigma 18-50mm F2.8 DC DN Contemporary
Compare
APS-C / DX 290gr AF Amazon B&H Photo
Fujifilm XF 16-80mm F4 R OIS WR Lens Fujifilm XF 16-80mm F4 R OIS WR
Compare
APS-C / DX 440gr AF Amazon B&H Photo
Fujifilm XF 18-135mm F3.5-5.6 R LM OIS WR Lens Fujifilm XF 18-135mm F3.5-5.6 R LM OIS WR
Compare
APS-C / DX 490gr AF Amazon B&H Photo
Fujifilm XF 55-200mm F3.5-4.8 R LM OIS Lens Fujifilm XF 55-200mm F3.5-4.8 R LM OIS
Compare
APS-C / DX 580gr AF Amazon B&H Photo
Canon EF-S 18-55mm f3.5-5.6 Lens Canon EF-S 18-55mm f3.5-5.6
Compare
APS-C / DX 190gr AF Amazon B&H Photo

Related Blog Posts

Sony FE 100-400 E vs Canon 100-500 RF vs Nikon Z 100-400 vs Canon RF 100-400 Lens Size Comparison
Tamron 17-70 F2.8 vs Fujifilm 16-55 F2.8 vs Fujifilm 16-80 F4 vs Fujifilm 18-55 F2.8-4 Lens Size and Specs Comparison
Tamron 17-70mm F2.8 Di III-A VC RXD Released for Fujifilm X Mount
Fujifilm G and X Mount Camera and Lens Deals - Save up to $2000
Todays Deals: Samyang 12mm F2 for $399, Bolt Flashes for $49 and more
Cameras with Stacked Sensors and No Blackout Viewfinders in 2022
Todays Deals: Tripod, Microphone and more
New Fujifilm X Mount Lens Roadmap adds Three New Prime Lenses


**This post contains affiliate links and I will be compensated if you make a purchase after clicking through my links. As an Amazon Associate I earn from qualifying purchases.

Pros and Cons of Fujifilm XF 18-55mm F2.8-4 R LM OIS


PROs
Image Stabilization
Built-in Autofocus
Hood supplied
Full-time Manual Focusing
Fast and Bright at Wide end
Fast and Bright at Tele end

CONs
No Weather Sealing
Lens Extents while focusing
Variable Aperture
Fujifilm XF 18-55mm F2.8-4 R LM OIS Alternatives in Fujifilm X Mount
Model Coverage Weight Focusing Street Price
Fujifilm XF 16-55mm F2.8 R LM WR Lens Fujifilm XF 16-55mm F2.8 R LM WR
Compare
APS-C / DX 655gr AF Amazon B&H Photo
Fujifilm XC 15-45mm F3.5-5.6 OIS PZ Lens Fujifilm XC 15-45mm F3.5-5.6 OIS PZ
Compare
APS-C / DX 136gr AF Amazon B&H Photo
Fujifilm Fujinon MKX 18-55mm T2.9 Lens Fujifilm Fujinon MKX 18-55mm T2.9
Compare
35mm FF 1080gr MF Amazon B&H Photo
Fujifilm XC 16-50mm F3.5-5.6 OIS Lens Fujifilm XC 16-50mm F3.5-5.6 OIS
Compare
APS-C / DX 195gr AF Amazon B&H Photo

Fujifilm 18-55mm F2.8-4 R LM OIS Detailed Specifications


General
Brand Fujifilm
Lens Type Zoom
Lens Type Standard Zoom
Lens Mount Fujifilm X
Max Format APS-C / DX
Focal Range 18-55mm
Image Stabilization Yes
Colour Unknown
Zoom Method Rotary (extending)
Power Zoom No Zoom
Zoom Lock No Zoom
Zoom Ratio 3.1X
APERTURE
Max Aperture F2.8 - F4.0
Min Aperture F22.0
Aperture Ring Yes
Diaphragm Blades 7
Optics
Optical Elements 14
Optical Groups 10
Special Elements 3 aspherical elements, 1 extra low dispersion element

FOCUSING
Min Focus Distance 0.4m
Max Magnification 0.15X
Autofocus Yes
AF Motor Type Stepper motor
Full Time Manual Yes
Focus Method Internal
Distance Scale No
DoF Scale No
PHYSICAL SPECS
Weight 310g
Diameter 65mm
Length 70mm
Weather Sealing No
Filter Thread 58mm
Filter Notes -
Hood Supplied Yes
Tripod Collar No
Report a Correction
Frequently Asked Questions about Fujifilm XF 18-55mm F2.8-4 R LM OIS
is the Fujifilm XF 18-55mm F2.8-4 R LM OIS a Weather Sealed lens?
What is the Minimum Focusing Distance of Fujifilm XF 18-55mm F2.8-4 R LM OIS
is the Fujifilm XF 18-55mm F2.8-4 R LM OIS an Autofocus (AF) lens?
What is the Filter Thread Size of Fujifilm XF 18-55mm F2.8-4 R LM OIS
Does Fujifilm XF 18-55mm F2.8-4 R LM OIS have Image Stabilization?
Does Fujifilm XF 18-55mm F2.8-4 R LM OIS have Aperture Ring?
What is the Maximum Magnification Ratio of Fujifilm XF 18-55mm F2.8-4 R LM OIS
