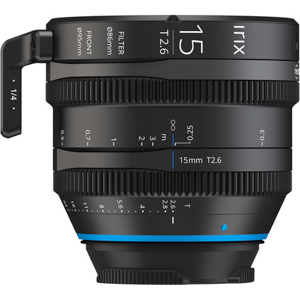

IRIX 15mm is a Wideangle Prime type cinema lens that is compatible with Sony E Mount cameras.
Focal Range
The IRIX 15mm has a fixed focal length of 15mm. This lens' max format coverage is Full Frame and provides and Image circle of 43.3mm.
Diagonal Angle of View
The diagonal angle of view of the IRIX 15mm is Super35: 79.4, APS-C (1.5x): 76.5, APS-C1.6x): 73, MFT: 59.9 .
Minimum Focus Distance
The minimum focus distance of the IRIX 15mm is 9.8 inch from the Image Plane.
Lens Support
Heavy cinema lenses put a lot of stress on the camera mount and your rig so the lens support on the lens provides another point to mount the lens and distribute the weight more evenly. The IRIX 15mm has a Lens Support Foot with 1/4-inch Mounting Thread to support the weight.
Gear MOD & Pitch
- Focus: 0.8 MOD / 32 Pitch
- Iris / Aperture: 0.8 MOD / 32 Pitch
Rotation Angle
- Focus Ring Rotation: 180°
- Iris / Aperture Ring Rotation: 75°
Optical Design
The optical construction of the IRIX 15mm consists of 15 Elements in 10 Groups. The diaphragm / iris has 9 blades .
Physical Specs
The IRIX 15mm weighs 957.1g / 2.11lbs . The front diameter of the lens is 95 mm / 3.7 inch.
