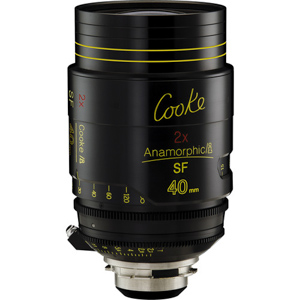

Cooke 40mm T2.3 Anamorphic/i SF is an Anamorphic Standard Prime type cinema lens with Super35/APS-C size sensor coverage that is available in ARRI PL Mounts.
Here are some common uses cases for Standard Prime Cinema Lenses such as the Cooke 40mm T2.3 Anamorphic/i SF :
- Conversational and interaction-focused scenes.
- Medium close-ups with natural perspective.
- Realistic day-to-day scenes.
- Walk-and-talk sequences.
- Close detail work like hands-on tasks.
Cooke 40mm T2.3 Anamorphic/i SF is a member of Cooke's Anamorphic/i series of lenses. Below you can see the latest lenses in this series.
Anamorphic/i Series Lenses
Focal Range
The Cooke 40mm T2.3 Anamorphic/i SF has a fixed focal length of 40mm. This lens' max format coverage is Super35/APS-C. Due to the crop ratio of 1.5x, when it is mounted on an Super35/APS-C sensor camera, the effective focal length of the lens will be approximately 60mm.
Diagonal Angle of View
The diagonal angle of view of the Cooke 40mm T2.3 Anamorphic/i SF is Super35: 62.8 .
Minimum Focus Distance
The minimum focus distance of the Cooke 40mm T2.3 Anamorphic/i SF is 22 inch.
Lens Support
Heavy cinema lenses put a lot of stress on the camera mount and your rig so the lens support on the lens provides another point to mount the lens and distribute the weight more evenly. The Cooke 40mm T2.3 Anamorphic/i SF has a Lens Support Foot with 1/4-inch Mounting Thread to support the weight.
Gear MOD & Pitch
- Focus: 0.8 MOD / 32 Pitch
- Iris / Aperture: 0.8 MOD / 32 Pitch
Rotation Angle
- Focus Ring Rotation: 300�°
- Iris / Aperture Ring Rotation: 90�°
Physical Specs
The Cooke 40mm T2.3 Anamorphic/i SF weighs 3402.0g / 7.50lbs . The front diameter of the lens is 110 mm / 4.3 inch.
