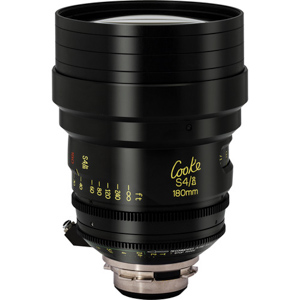

Cooke 180mm S4/i T2 is a Telephoto Prime type cinema lens with Super35/APS-C size sensor coverage that is available in ARRI PL Mounts.
Here are some common uses cases for Telephoto Prime Cinema Lenses such as the Cooke 180mm S4/i T2 :
- Intimate close-ups to capture emotion.
- Isolating subjects in action scenes.
- Long-distance shots in vast landscapes.
- Suspenseful, voyeuristic angles.
- Depth-compressed shots for visual impact.
- Dramatic, tight reveals on characters.
Cooke 180mm S4/i T2 is a member of Cooke's S4/i series of lenses. Below you can see the latest lenses in this series.
Focal Range
The Cooke 180mm S4/i T2 has a fixed focal length of 180mm. This lens' max format coverage is Super35/APS-C and provides and Image circle of 30.0mm. Due to the crop ratio of 1.5x, when it is mounted on an Super35/APS-C sensor camera, the effective focal length of the lens will be approximately 270mm.
Horizontal Angle of View
The horizontal angle of view of the Cooke 180mm S4/i T2 is Super35: 9.5.
Minimum Focus Distance
The minimum focus distance of the Cooke 180mm S4/i T2 is 3.5 foot from the Front of Lens.
Connectivity
Connectivity provided via 1 x 4-Pin LEMO Data.
Gear MOD & Pitch
- Focus: 0.8 MOD / 32 Pitch
- Iris / Aperture: 0.8 MOD / 32 Pitch
Rotation Angle
- Focus Ring Rotation: 320�°
- Iris / Aperture Ring Rotation: 94�°
Physical Specs
The Cooke 180mm S4/i T2 weighs 4309.2g / 9.50lbs . The front diameter of the lens is 136 mm / 5.4 inch.
