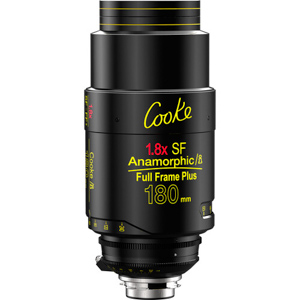

Cooke 180mm Anamorphic/i 1.8x Full Frame SF is an Anamorphic Telephoto Prime type cinema lens with Full Frame (24 x 36 mm size sensor coverage that is available in ARRI PL Mounts.
Here are some common uses cases for Telephoto Prime Cinema Lenses such as the Cooke 180mm Anamorphic/i 1.8x Full Frame SF :
- Intimate close-ups to capture emotion.
- Isolating subjects in action scenes.
- Long-distance shots in vast landscapes.
- Suspenseful, voyeuristic angles.
- Depth-compressed shots for visual impact.
- Dramatic, tight reveals on characters.
Cooke 180mm Anamorphic/i 1.8x Full Frame SF is a member of Cooke's Anamorphic/i series of lenses. Below you can see the latest lenses in this series.
Anamorphic/i Series Lenses
Focal Range
The Cooke 180mm Anamorphic/i 1.8x Full Frame SF has a fixed focal length of 180mm. This lens' max format coverage is Full Frame (24 x 36 mm and provides and Image circle of 46.3mm.
Horizontal Angle of View
The horizontal angle of view of the Cooke 180mm Anamorphic/i 1.8x Full Frame SF is Full Frame: 22.
Minimum Focus Distance
The minimum focus distance of the Cooke 180mm Anamorphic/i 1.8x Full Frame SF is 5.28 foot from the Front of Lens.
Connectivity
Connectivity provided via 1 x 4-Pin LEMO Data.
Gear MOD & Pitch
- Focus: 0.8 MOD / 32 Pitch
- Iris / Aperture: 0.8 MOD / 32 Pitch
Rotation Angle
- Focus Ring Rotation: 270�°
- Iris / Aperture Ring Rotation: 90�°
Physical Specs
The Cooke 180mm Anamorphic/i 1.8x Full Frame SF weighs 3800.0g / lbs . The front diameter of the lens is 110 mm / 4.3 inch.
