Size and weight is a big decision factor when you are trying to find the ideal camera for your needs.
In this section, We are going to illustrate Olympus E-M10 IV and Sony A6100 side-by-side from the front, back and top in their relative dimensions. Olympus E-M10 IV has external dimensions of 122 x 84 x 49 mm (4.8 x 3.31 x 1.93″) and weighs 383 g (0.84 lb / 13.51 oz) (including batteries). Sony A6100 has external dimensions of 120 x 67 x 59 mm (4.72 x 2.64 x 2.32″) and weighs 396 g (0.87 lb / 13.97 oz) (including batteries).

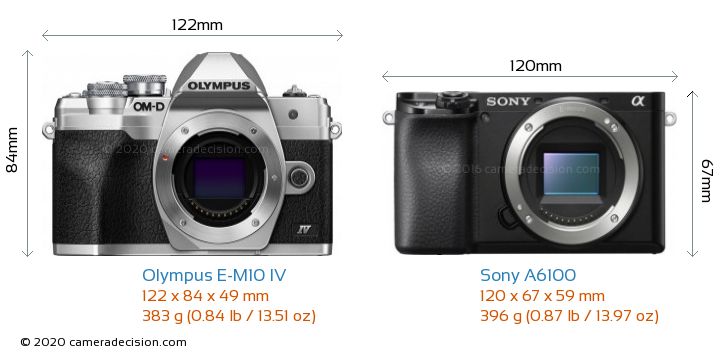

Below you can see the front view size comparison of Olympus E-M10 IV and Sony A6100. Sony A6100 is 2mm narrower and 17mm shorter than Olympus E-M10 IV but they have the same thickness of 49mm.
Comparison image of Olympus E-M10 IV and Sony A6100 Size, Weight and External Dimensions - Front View

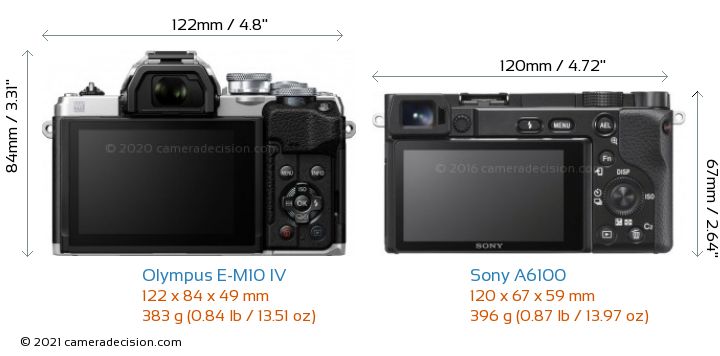

Here is the back view size comparison of Olympus E-M10 IV and Sony A6100.
Comparison image of Olympus E-M10 IV and Sony A6100 Size and Weight - Back View
Now lets look at the top view comparison of Olympus E-M10 IV and Sony A6100.
Top View Comparison image of Olympus E-M10 IV and Sony A6100 Size
Weight is another important factor especially when deciding on a camera that you want to carry with you all day.
Olympus E-M10 IV is 13g lighter than the Sony A6100 but we don't think this will make a significant difference.

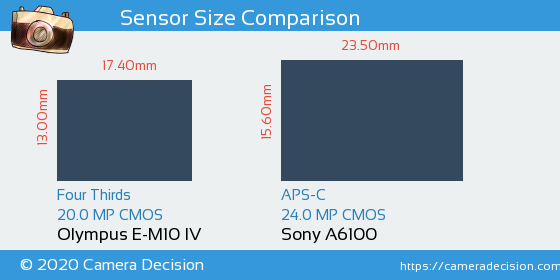

Also keep in mind that body weight is not the only deciding factor when comparing two interchangeable camera bodies, you have to also take into account the lenses that you will be using with these bodies. Since Sony A6100 has an APS-C sized sensor and Olympus E-M10 IV has a smaller Four Thirds sensor, Olympus E-M10 IV's lenses for a similar focal length and aperture will generally be lighter and smaller than the Sony A6100 lenses.
Weather Sealing
Unfortunately neither Olympus OM-D E-M10 IV nor Sony Alpha a6100 provides any type of weather sealing in their body, so you have to give extra care especially when you are shooting outdoors. If weather sealing is a must-have feature for you, check these sections: Top Mirrorless Cameras with Weather Sealing
LCD Screen Size and Features
Olympus E-M10 IV and Sony A6100's LCD screens has the same diagonal size of 3.00".
Both cameras feature
Tilting screens where you can change the angle of the screen to make it easier to shoot from waist or over the head levels.
