Sony A77 has a
24.0MP APS-C (23.5 x 15.6 mm ) sized CMOS sensor and features Bionz processor. On the other hand, Panasonic GH5 II has a
20.0MP Four Thirds (17.3 x 13 mm ) sized CMOS sensor and features Venus Engine processor.
One other difference between these two cameras that is worth mentioning is that Panasonic GH5 II's sensor doesn't have an anti-alias (Low-Pass) filter. Removing anti-alias filter increases the sharpness and level of detail but at the same time, it increases the chance of moiré occurring in certain scenes.

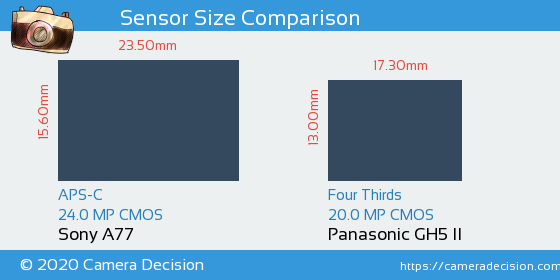

Below you can see the A77 and GH5 II sensor size comparison.
Sensor Size and Resolution Comparison image of Sony A77 and Panasonic GH5 II Cameras
As seen above, Sony A77 has a 1.6x Larger sensor area than Panasonic GH5 II. Larger sensors give photographer more control on the depth of field and blurry background compared to smaller sensor when shot in same focal length and aperture.
DxOMark Sensor Scores
DxOMark is a benchmark that scientifically assesses image quality of camera sensors. It scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Sony A77 and Panasonic GH5 II sensors have been tested by DxO and the results show that GH5 II has a better overall score of 79, 1 points higher compared to A77's score of 78.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Sony A77
78
24.0 bits
13.2 Evs
801 ISO
Panasonic GH5 II
79
23.7 bits
13.1 Evs
1136 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Sony A77
or the
Panasonic GH5 II ,
including hyperfocal distance.
One thing to watch when comparing these two: they have different sensor sizes
(APS-C versus Four Thirds),
so compare them at the same framing rather than the same focal length.
Put the same focal length on the smaller sensor and it will show less depth of
field, not more, because it also crops tighter. The calculator shows the
full frame equivalent focal length for each body so you can match the framing.
