Size and weight are big decision factors when you are trying to find the ideal camera for your needs.
In this section, we are going to illustrate the Sony A77 II and Canon T8i side-by-side from the front, back and top in their relative dimensions. Sony A77 II has external dimensions of 143 x 104 x 81 mm (5.63 x 4.09 x 3.19″) and weighs 647 g (1.43 lb / 22.82 oz) (including batteries). Canon T8i has external dimensions of 131 x 103 x 76 mm (5.16 x 4.00 x 2.99″) and weighs 515 g (1.14 lb / 18.17 oz) (including batteries).
Below you can see the front-view size comparison of the Sony A77 II and the Canon T8i. Canon T8i is clearly the smaller of the two cameras. Its body is 12mm narrower, 1mm shorter and 5mm thinner than Sony A77 II.

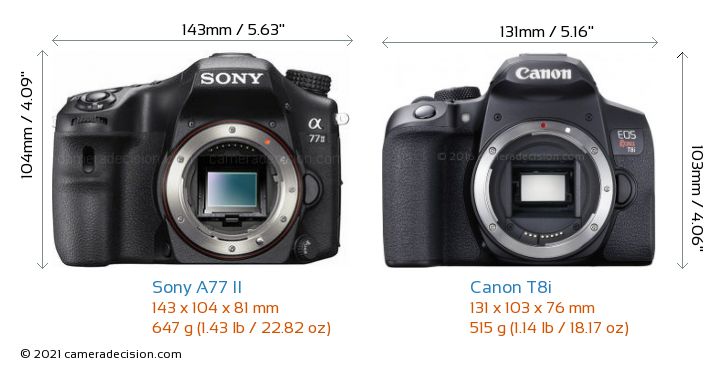

Comparison image of the Sony A77 II and the Canon T8i Size, Weight and External Dimensions - Front View
Here is the back view size comparison of the Sony A77 II and Canon T8i.

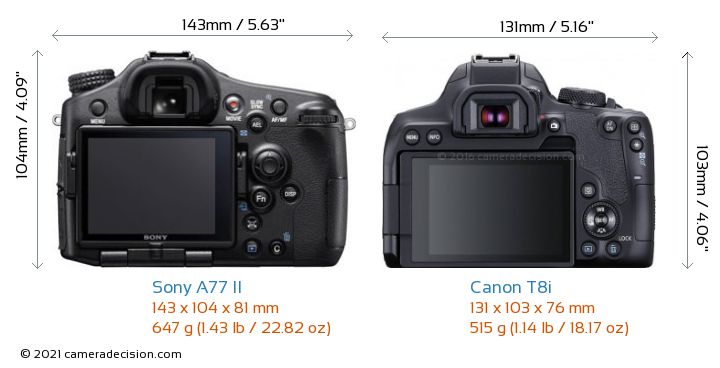

Comparison image of the Sony A77 II and the Canon T8i Size and Weight - Back View
Now lets look at the top view comparison of Sony A77 II and Canon T8i.

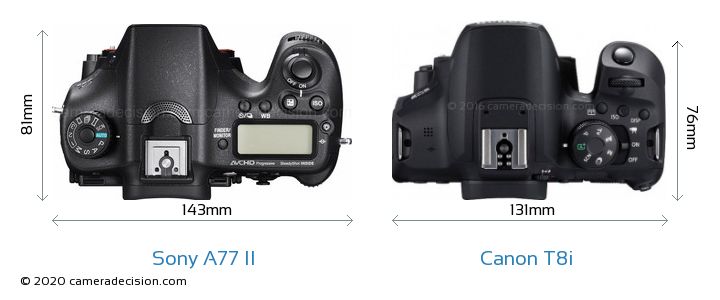

Top View Comparison image of the Sony A77 II and the Canon T8i Size
Weight is another important factor, especially when deciding on a camera that you want to carry with you all day.
Canon T8i is significantly lighter (132g ) than the Sony A77 II which may become a big advantage especially on long walking trips.

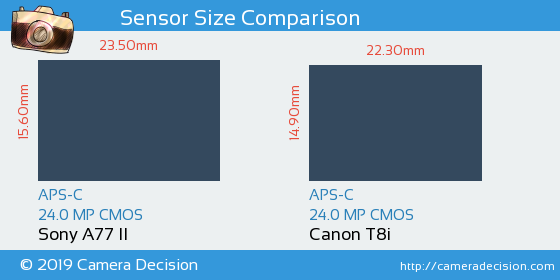

Also keep in mind that body weight is not the only deciding factor when comparing two interchangeable camera bodies, you also have to take into account the lenses that you will be using with these bodies. Since both Sony A77 II and Canon T8i have the same APS-C sized sensor, their lenses for a similar focal length and aperture will be similar in size and weight.
Weather Sealing
With its weather-sealed body, we believe that the A77 II has a big advantage over the T8i which doesn't provide any kind of environmental sealing.
LCD Screen Size and Features
Sony A77 II and Canon T8i's LCD screens have the same diagonal size of 3.00 inches.
Both cameras feature
Fully Articulating screens where you can change the angle of the screen to make it easier to shoot from waist or over-the-head levels. Fully articulating screens are also useful for taking Selfies and video.
