Sony RX1R II has a
42.0MP Full frame (35.9 x 24 mm ) sized BSI-CMOS sensor and features BIONZ X processor. On the other hand, Canon S100 has a
12.0MP 1/1.7-inch (7.44 x 5.58 mm ) sized CMOS sensor and features Digic 5 processor.
Sony RX1R II's sensor provides 30MP more than Canon S100's sensor, which gives a significant advantage in real life. You can print your images larger or crop more freely.
On the other hand, please keep in mind that Max sensor resolution is not the only determinant of resolving power. Factors such as the optical elements, low pass filter, pixel size and sensor technology also affects the final resolution of the captured image.
Another difference between these two cameras is that Sony RX1R II's sensor lacks anti-alias (Low-Pass) filter. Removing anti-alias filter increases the sharpness and level of detail but at the same time, it increases the chance of moiré occurring in certain scenes.

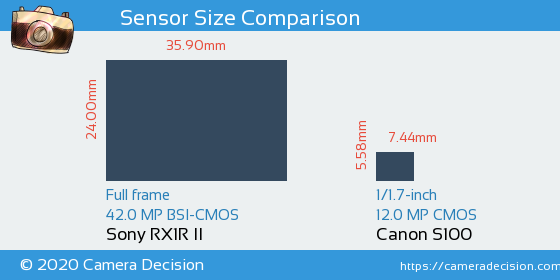

Below you can see the RX1R II and S100 sensor size comparison.
Sensor Size and Resolution Comparison image of Sony RX1R II and Canon S100 Cameras
As seen above, Sony RX1R II has a 20.8x Larger sensor area than Canon S100. Larger sensors give photographer more control on the depth of field and blurry background compared to smaller sensor when shot in same focal length and aperture.
DxOMark Sensor Scores
Both Sony RX1R II and Canon S100 sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, RX1R II has scored 97, 47 points higher than S100.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Sony RX1R II
97
25.8 bits
13.9 Evs
3204 ISO
Canon S100
50
20.7 bits
11.6 Evs
153 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Sony RX1R II
or the
Canon S100 ,
including hyperfocal distance.
One thing to watch when comparing these two: they have different sensor sizes
(Full frame versus 1/1.7-inch),
so compare them at the same framing rather than the same focal length.
Put the same focal length on the smaller sensor and it will show less depth of
field, not more, because it also crops tighter. The calculator shows the
full frame equivalent focal length for each body so you can match the framing.
