Sony A9 has a
24.0MP Full frame (35.6 x 23.8 mm ) sized Stacked BSI-CMOS sensor and features BIONZ X processor. On the other hand, Pixii Max has a
24.5MP Full frame (36 x 24 mm ) sized CMOS sensor .
One other difference between these two cameras that is worth mentioning is that Pixii Max's sensor doesn't have an anti-alias (Low-Pass) filter. Removing anti-alias filter increases the sharpness and level of detail but at the same time, it increases the chance of moiré occurring in certain scenes.

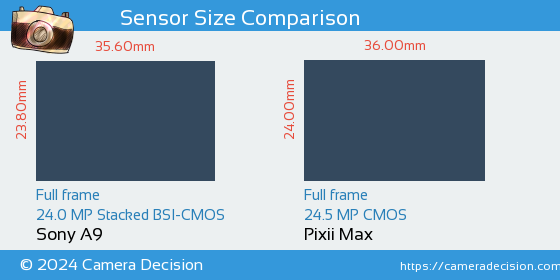

Below you can see the A9 and Max (A3410) sensor size comparison.
Sensor Size and Resolution Comparison image of Sony A9 and Pixii Max Cameras
Sony A9 and Pixii Max have almost the same sensor size, so neither of them has any significant advantage over the other in terms of providing control over depth of field when used with the same focal length and aperture.
DxOMark Sensor Scores
DxOMark is a benchmark that scientifically assesses image quality of camera sensors. It scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Sony A9 and Pixii Max sensors have been tested by DxO and the results show that Max (A3410) has a better overall score of 93, 1 points higher compared to A9's score of 92.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Sony A9
92
24.9 bits
13.3 Evs
3517 ISO
Pixii Max
93
25.2 bits
13.6 Evs
3108 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Sony A9
or the
Pixii Max ,
including hyperfocal distance.
