Fujifilm X-T20 has a 24.0MP APS-C (23.6 x 15.6 mm ) sized CMOS X-TRANS III sensor and features X-Processor Pro2 processor. On the other hand, Fujifilm X-E2S has a 16.0MP APS-C (23.6 x 15.6 mm ) sized CMOS X-TRANS II sensor and features EXR Processor II processor. Fujifilm X-T20's sensor provides 8MP more than Fujifilm X-E2S's sensor, which gives a significant advantage in real life. You can print your images larger or crop more freely.
On the other hand, please keep in mind that Max sensor resolution is not the only determinant of resolving power. Factors such as the optical elements, low pass filter, pixel size and sensor technology also affects the final resolution of the captured image.
Another similarity between these two cameras is that both Fujifilm X-E2S and Fujifilm X-T20 sensors lack anti-alias (Low-Pass) filters. Removing anti-alias filter increases the sharpness and level of detail but at the same time, it increases the chance of moire occurring in certain scenes.

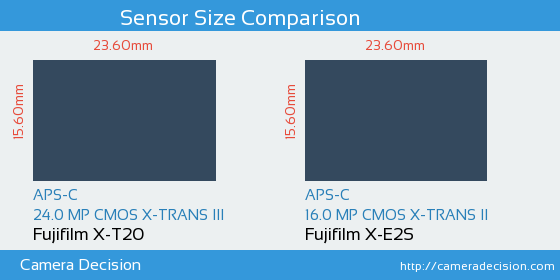

Below you can see the X-T20 and X-E2S sensor size comparison.
Fujifilm X-T20 and Fujifilm X-E2S have sensor sizes so they will provide same level of control over the depth of field when used with same focal length and aperture. On the other hand, since Fujifilm X-E2S has 50% larger pixel area (23.04µm2 vs 15.34µm2) compared to Fujifilm X-T20, it has larger pixel area to collect light hence potential to have less noise in low light / High ISO images.
