Panasonic GH5 has a
20.0MP Four Thirds (17.3 x 13 mm ) sized CMOS sensor and features Venus Engine processor. On the other hand, Canon 60D has a
18.0MP APS-C (22.3 x 14.9 mm ) sized CMOS sensor and features Digic 4 processor.
Another difference between these two cameras is that Panasonic GH5's sensor lacks anti-alias (Low-Pass) filter. Removing anti-alias filter increases the sharpness and level of detail but at the same time, it increases the chance of moiré occurring in certain scenes.

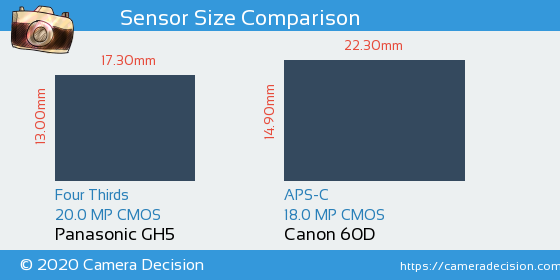

Below you can see the GH5 and 60D sensor size comparison.
Sensor Size and Resolution Comparison image of Panasonic GH5 and Canon 60D Cameras
As seen above, Canon 60D has a 1.5x Larger sensor area than Panasonic GH5. Larger sensors give photographer more control on the depth of field and blurry background compared to smaller sensor when shot in same focal length and aperture.
DxOMark Sensor Scores
Both Panasonic GH5 and Canon 60D sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, GH5 has scored 77, 11 points higher than 60D.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Panasonic GH5
77
23.9 bits
13.0 Evs
807 ISO
Canon 60D
66
22.2 bits
11.5 Evs
813 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Panasonic GH5
or the
Canon 60D ,
including hyperfocal distance.
One thing to watch when comparing these two: they have different sensor sizes
(Four Thirds versus APS-C),
so compare them at the same framing rather than the same focal length.
Put the same focal length on the smaller sensor and it will show less depth of
field, not more, because it also crops tighter. The calculator shows the
full frame equivalent focal length for each body so you can match the framing.
