Olympus E-520 has a
10.0MP Four Thirds (17.3 x 13 mm ) sized CMOS sensor . On the other hand, Fujifilm F550 EXR has a
16.0MP 1/2-inch (6.4 x 4.8 mm ) sized EXRCMOS sensor and features EXR processor.
Fujifilm F550 EXR's sensor provides 6MP more than Olympus E-520's sensor, which gives a significant advantage in real life. You can print your images larger or crop more freely.
On the other hand, please keep in mind that Max sensor resolution is not the only determinant of resolving power. Factors such as the optical elements, low pass filter, pixel size and sensor technology also affects the final resolution of the captured image.

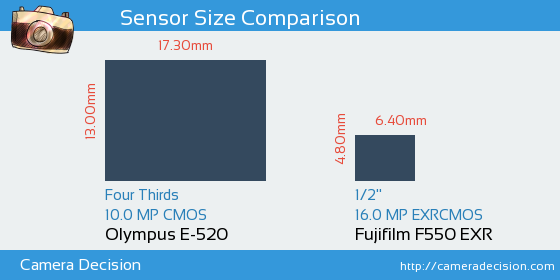

Below you can see the E-520 and F550 EXR sensor size comparison.
Sensor Size and Resolution Comparison image of Olympus E-520 and Fujifilm F550 EXR Cameras
As seen above, Olympus E-520 has a 7.3x Larger sensor area than Fujifilm F550 EXR. Larger sensors give photographer more control on the depth of field and blurry background compared to smaller sensor when shot in same focal length and aperture.
DxOMark Sensor Scores
Both Olympus E-520 and Fujifilm F550 EXR sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, E-520 has scored 55, 16 points higher than F550 EXR.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Olympus E-520
55
21.4 bits
10.4 Evs
548 ISO
Fujifilm F550 EXR
39
19.2 bits
10.6 Evs
158 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Olympus E-520
or the
Fujifilm F550 EXR ,
including hyperfocal distance.
One thing to watch when comparing these two: they have different sensor sizes
(Four Thirds versus 1/2-inch),
so compare them at the same framing rather than the same focal length.
Put the same focal length on the smaller sensor and it will show less depth of
field, not more, because it also crops tighter. The calculator shows the
full frame equivalent focal length for each body so you can match the framing.
