Size and weight are big decision factors when you are trying to find the ideal camera for your needs.
In this section, we are going to illustrate the Fujifilm X-T20 and Canon 80D side-by-side from the front, back and top in their relative dimensions. Fujifilm X-T20 has external dimensions of 118 x 83 x 41 mm (4.65 x 3.27 x 1.61″) and weighs 383 g (0.84 lb / 13.51 oz) (including batteries). Canon 80D has external dimensions of 139 x 105 x 79 mm (5.47 x 4.13 x 3.11″) and weighs 730 g (1.61 lb / 25.75 oz) (including batteries).

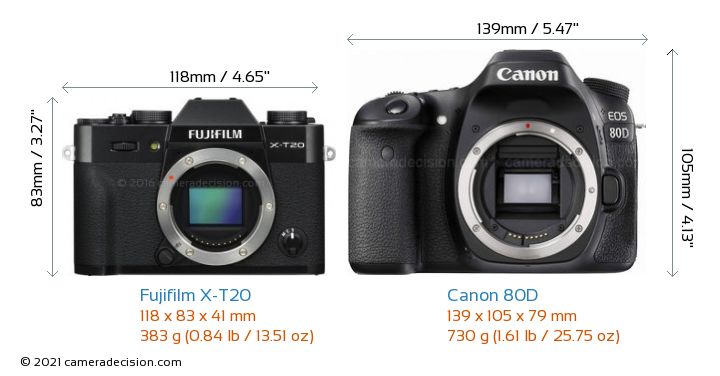

Below you can see the front-view size comparison of the Fujifilm X-T20 and the Canon 80D. Fujifilm X-T20 is clearly the smaller of the two cameras. Its body is 21mm narrower, 22mm shorter and 38mm thinner than Canon 80D.

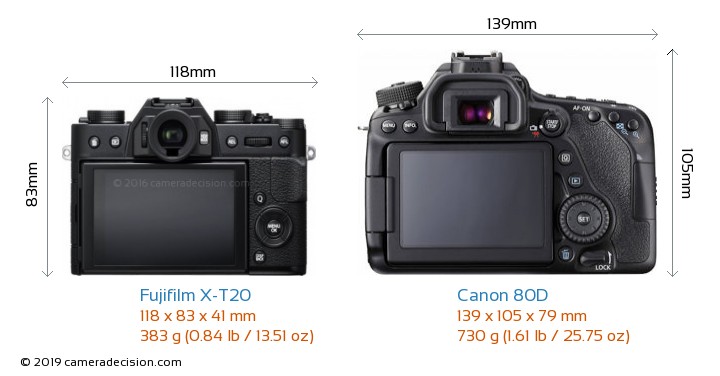

Here is the back view size comparison of the Fujifilm X-T20 and Canon 80D.

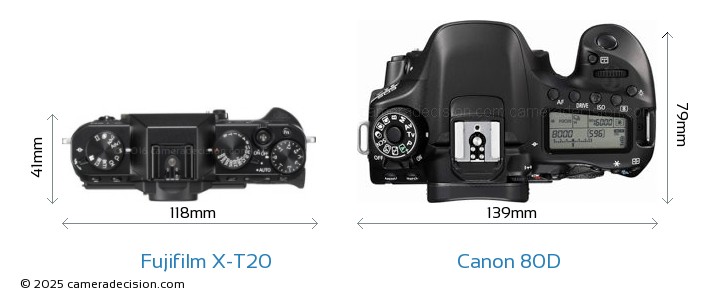

Now lets look at the top view comparison of Fujifilm X-T20 and Canon 80D.
Weight is another important factor, especially when deciding on a camera that you want to carry with you all day.
Fujifilm X-T20 is significantly lighter (347g ) than the Canon 80D which may become a big advantage especially on long walking trips.

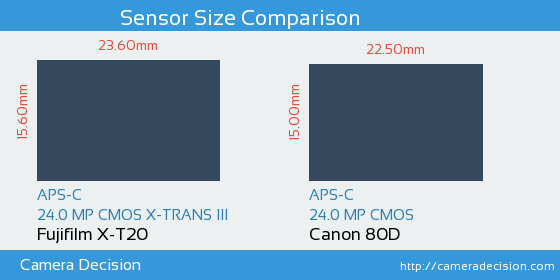

Also keep in mind that body weight is not the only deciding factor when comparing two interchangeable camera bodies, you also have to take into account the lenses that you will be using with these bodies. Since both Fujifilm X-T20 and Canon 80D have the same APS-C sized sensor, their lenses for a similar focal length and aperture will be similar in size and weight.
Weather Sealing
Thanks to the weather-sealed body of the 80D, you can use this camera with more confidence under conditions where there is risk of exposure to water and dust compared to the X-T20.
LCD Screen Size and Features
Fujifilm X-T20 and Canon 80D's LCD screens have the same diagonal size of 3.00 inches.
Fujifilm X-T20 features a
Tilting-only screen which is mostly only good for shooting from waist or over-the-head levels. On the other hand, Canon 80D sports a
Fully Articulated screen which is more flexible and useful, especially for taking selfies and video.
