Canon M3 has a
24.0MP APS-C (22.3 x 14.9 mm ) sized CMOS sensor and features DIGIC 6 processor. On the other hand, Leica M8 has a
10.0MP APS-H (27 x 18 mm ) sized CCD sensor .
Canon M3's sensor provides 14MP more than Leica M8's sensor, which gives a significant advantage in real life. You can print your images larger or crop more freely.
On the other hand, please keep in mind that Max sensor resolution is not the only determinant of resolving power. Factors such as the optical elements, low pass filter, pixel size and sensor technology also affects the final resolution of the captured image.
One other difference between these two cameras that is worth mentioning is that Leica M8's sensor doesn't have an anti-alias (Low-Pass) filter. Removing anti-alias filter increases the sharpness and level of detail but at the same time, it increases the chance of moiré occurring in certain scenes.

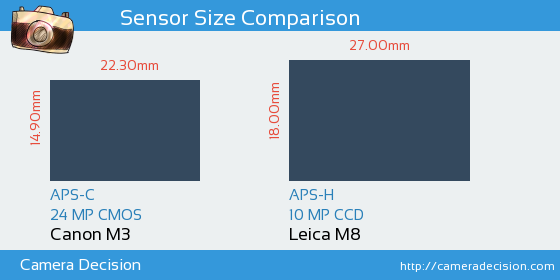

Below you can see the M3 and M8 sensor size comparison.
Sensor Size and Resolution Comparison image of Canon M3 and Leica M8 Cameras
As seen above, Leica M8 has a 1.5x Larger sensor area than Canon M3. Larger sensors give photographer more control on the depth of field and blurry background compared to smaller sensor when shot in same focal length and aperture.
DxOMark Sensor Scores
Both Canon M3 and Leica M8 sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, M3 has scored 72, 13 points higher than M8.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Canon M3
72
22.8 bits
11.8 Evs
1169 ISO
Leica M8
59
21.1 bits
11.3 Evs
663 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Canon M3
or the
Leica M8 ,
including hyperfocal distance.
One thing to watch when comparing these two: they have different sensor sizes
(APS-C versus APS-H),
so compare them at the same framing rather than the same focal length.
Put the same focal length on the smaller sensor and it will show less depth of
field, not more, because it also crops tighter. The calculator shows the
full frame equivalent focal length for each body so you can match the framing.
