Samsung NX500 has a
28.0MP APS-C (23.5 x 15.7 mm ) sized BSI-CMOS sensor and features DRIMe 5 processor. On the other hand, Olympus SP-565UZ has a
10.0MP 1/2.3-inch (6.08 x 4.56 mm ) sized CCD sensor .
Samsung NX500's sensor provides 18MP more than Olympus SP-565UZ's sensor, which gives a significant advantage in real life. You can print your images larger or crop more freely.
On the other hand, please keep in mind that Max sensor resolution is not the only determinant of resolving power. Factors such as the optical elements, low pass filter, pixel size and sensor technology also affects the final resolution of the captured image.
Another difference between these two cameras is that Samsung NX500's sensor lacks anti-alias (Low-Pass) filter. Removing anti-alias filter increases the sharpness and level of detail but at the same time, it increases the chance of moiré occurring in certain scenes.

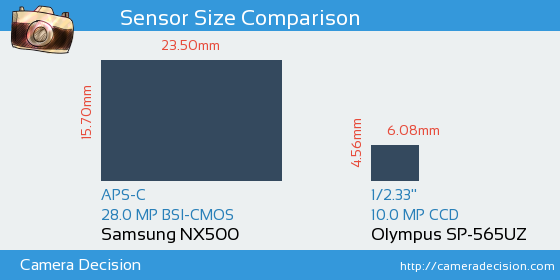

Below you can see the NX500 and SP-565UZ sensor size comparison.
Sensor Size and Resolution Comparison image of Samsung NX500 and Olympus SP-565UZ Cameras
As seen above, Samsung NX500 has a 13.3x Larger sensor area than Olympus SP-565UZ. Larger sensors give photographer more control on the depth of field and blurry background compared to smaller sensor when shot in same focal length and aperture.
DxOMark Sensor Scores
Both Samsung NX500 and Olympus SP-565UZ sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, NX500 has scored 87, 57 points higher than SP-565UZ.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Samsung NX500
87
24.8 bits
13.9 Evs
1379 ISO
Olympus SP-565UZ
30
18.7 bits
10.1 Evs
68 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Samsung NX500
or the
Olympus SP-565UZ ,
including hyperfocal distance.
One thing to watch when comparing these two: they have different sensor sizes
(APS-C versus 1/2.3-inch),
so compare them at the same framing rather than the same focal length.
Put the same focal length on the smaller sensor and it will show less depth of
field, not more, because it also crops tighter. The calculator shows the
full frame equivalent focal length for each body so you can match the framing.
