Samsung NX20 has a
20.0MP APS-C (23.5 x 15.7 mm ) sized CMOS sensor . On the other hand, Olympus E-M10 II has a
16.0MP Four Thirds (17.3 x 13 mm ) sized CMOS sensor and features TruePic VII processor.

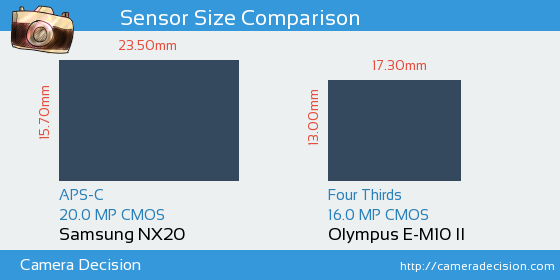

Below you can see the NX20 and E-M10 II sensor size comparison.
Sensor Size and Resolution Comparison image of Samsung NX20 and Olympus E-M10 II Cameras
As seen above, Samsung NX20 has a 1.6x Larger sensor area than Olympus E-M10 II. Larger sensors give photographer more control on the depth of field and blurry background compared to smaller sensor when shot in same focal length and aperture.
DxOMark Sensor Scores
Both Samsung NX20 and Olympus E-M10 II sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, NX20 has scored 75, 2 points higher than E-M10 II.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Samsung NX20
75
23.4 bits
12.9 Evs
785 ISO
Olympus E-M10 II
73
23.1 bits
12.5 Evs
842 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Samsung NX20
or the
Olympus E-M10 II ,
including hyperfocal distance.
One thing to watch when comparing these two: they have different sensor sizes
(APS-C versus Four Thirds),
so compare them at the same framing rather than the same focal length.
Put the same focal length on the smaller sensor and it will show less depth of
field, not more, because it also crops tighter. The calculator shows the
full frame equivalent focal length for each body so you can match the framing.
