Ricoh GR IIIx has a
24.0MP APS-C (23.5 x 15.6 mm ) sized CMOS sensor . On the other hand, Olympus 5010 has a
14.0MP 1/2.3-inch (6.08 x 4.56 mm ) sized CCD sensor and features TruePic III processor.
Ricoh GR IIIx's sensor provides 10MP more than Olympus 5010's sensor, which gives a significant advantage in real life. You can print your images larger or crop more freely.
On the other hand, please keep in mind that Max sensor resolution is not the only determinant of resolving power. Factors such as the optical elements, low pass filter, pixel size and sensor technology also affects the final resolution of the captured image.
Another difference between these two cameras is that Ricoh GR IIIx's sensor lacks anti-alias (Low-Pass) filter. Removing anti-alias filter increases the sharpness and level of detail but at the same time, it increases the chance of moiré occurring in certain scenes.

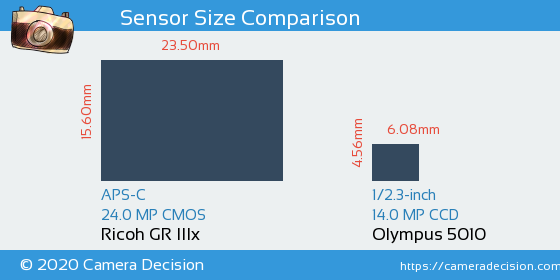

Below you can see the GR IIIx and 5010 sensor size comparison.
Sensor Size and Resolution Comparison image of Ricoh GR IIIx and Olympus 5010 Cameras
As seen above, Ricoh GR IIIx has a 13.2x Larger sensor area than Olympus 5010. Larger sensors give photographer more control on the depth of field and blurry background compared to smaller sensor when shot in same focal length and aperture.
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Ricoh GR IIIx
or the
Olympus 5010 ,
including hyperfocal distance.
One thing to watch when comparing these two: they have different sensor sizes
(APS-C versus 1/2.3-inch),
so compare them at the same framing rather than the same focal length.
Put the same focal length on the smaller sensor and it will show less depth of
field, not more, because it also crops tighter. The calculator shows the
full frame equivalent focal length for each body so you can match the framing.
