Pentax MX-1 has a
12.0MP 1/1.7-inch (7.44 x 5.58 mm ) sized CMOS sensor . On the other hand, Olympus XZ-1 has a
10.0MP 1/1.63-inch (8.07 x 5.56 mm ) sized CCD sensor and features TruePic V processor.
Below you can see the MX-1 and XZ-1 sensor size comparison.

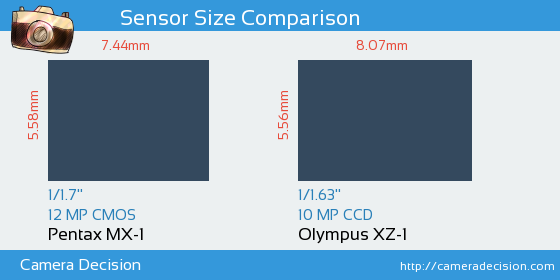

Sensor Size and Resolution Comparison image of Pentax MX-1 and Olympus XZ-1 Cameras
Pentax MX-1 and Olympus XZ-1 have almost the same sensor size, so neither of them has any significant advantage over the other in terms of providing control over depth of field when used with the same focal length and aperture.
DxOMark Sensor Scores
Both Pentax MX-1 and Olympus XZ-1 sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, MX-1 has scored 49, 15 points higher than XZ-1.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Pentax MX-1
49
20.4 bits
11.3 Evs
208 ISO
Olympus XZ-1
34
18.8 bits
10.4 Evs
117 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Pentax MX-1
or the
Olympus XZ-1 ,
including hyperfocal distance.
One thing to watch when comparing these two: they have different sensor sizes
(1/1.7-inch versus 1/1.63-inch),
so compare them at the same framing rather than the same focal length.
Put the same focal length on the smaller sensor and it will show less depth of
field, not more, because it also crops tighter. The calculator shows the
full frame equivalent focal length for each body so you can match the framing.
