Panasonic S5 has a
24.0MP Full frame (35.6 x 23.8 mm ) sized CMOS sensor and features Venus Engine processor. On the other hand, Canon G5 X has a
20.0MP 1″ (13.2 x 8.8 mm ) sized BSI-CMOS sensor and features DIGIC 6 processor.
Another difference between these two cameras is that Panasonic S5's sensor lacks anti-alias (Low-Pass) filter. Removing anti-alias filter increases the sharpness and level of detail but at the same time, it increases the chance of moiré occurring in certain scenes.

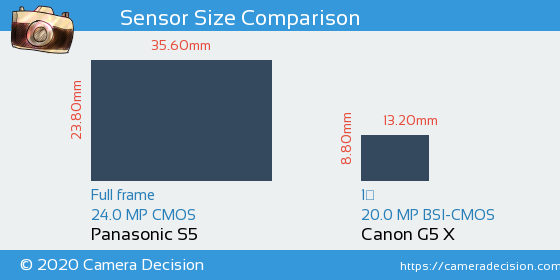

Below you can see the S5 and G5 X sensor size comparison.
Sensor Size and Resolution Comparison image of Panasonic S5 and Canon G5 X Cameras
As seen above, Panasonic S5 has a 7.3x Larger sensor area than Canon G5 X. Larger sensors give photographer more control on the depth of field and blurry background compared to smaller sensor when shot in same focal length and aperture.
DxOMark Sensor Scores
Both Panasonic S5 and Canon G5 X sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, S5 has scored 94, 32 points higher than G5 X.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Panasonic S5
94
25.1 bits
14.5 Evs
2697 ISO
Canon G5 X
62
21.4 bits
12.3 Evs
471 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Panasonic S5
or the
Canon G5 X ,
including hyperfocal distance.
One thing to watch when comparing these two: they have different sensor sizes
(Full frame versus 1″ ),
so compare them at the same framing rather than the same focal length.
Put the same focal length on the smaller sensor and it will show less depth of
field, not more, because it also crops tighter. The calculator shows the
full frame equivalent focal length for each body so you can match the framing.
