Panasonic GX8 has a
20.0MP Four Thirds (17.3 x 13 mm ) sized CMOS sensor and features Venus Engine processor. On the other hand, Panasonic GM5 has a
16.0MP Four Thirds (17.3 x 13 mm ) sized CMOS sensor and features Venus Engine processor.

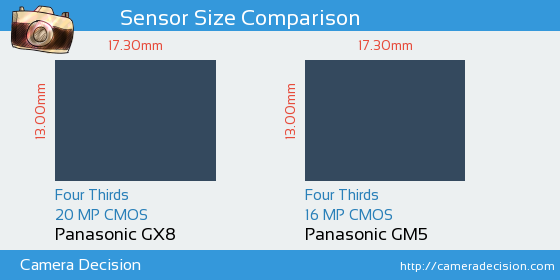

Below you can see the GX8 and GM5 sensor size comparison.
Sensor Size and Resolution Comparison image of Panasonic GX8 and Panasonic GM5 Cameras
Panasonic GX8 and Panasonic GM5 have the same sensor sizes so they will provide same level of control over the depth of field when used with same focal length and aperture. On the other hand, since Panasonic GM5 has 27% larger pixel area (14.21µm 2 vs 11.16µm 2 ) compared to Panasonic GX8, it has larger pixel area to collect light hence potential to have less noise in low light / High ISO images.
DxOMark Sensor Scores
Both Panasonic GX8 and Panasonic GM5 sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, GX8 has scored 75, 9 points higher than GM5.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Panasonic GX8
75
23.5 bits
12.6 Evs
806 ISO
Panasonic GM5
66
22.1 bits
11.7 Evs
721 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Panasonic GX8
or the
Panasonic GM5 ,
including hyperfocal distance.
