Both Panasonic GH2 and Fujifilm F600 EXR have 16.0 MP resolution sensors but Panasonic GH2's sensor is Four Thirds (17.3 x 13 mm ) and Fujifilm F600 EXR's sensor is 1/2-inch (6.4 x 4.8 mm ).
Since Panasonic GH2's has a larger sensor area with the same resolution, this means that it also has a larger pixel area hence better light collecting capacity for a given aperture compared to Fujifilm F600 EXR.

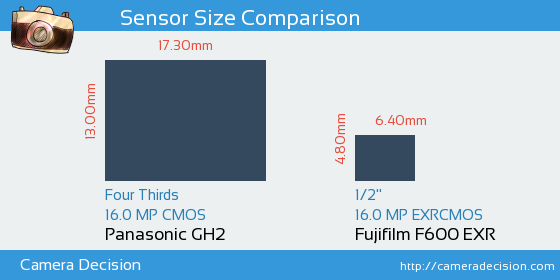

Below you can see the GH2 and F600 EXR sensor size comparison.
Sensor Size and Resolution Comparison image of Panasonic GH2 and Fujifilm F600 EXR Cameras
As seen above, Panasonic GH2 has a 7.3x Larger sensor area than Fujifilm F600 EXR. Larger sensors give photographer more control on the depth of field and blurry background compared to smaller sensor when shot in same focal length and aperture.
DxOMark Sensor Scores
Both Panasonic GH2 and Fujifilm F600 EXR sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, GH2 has scored 60, 20 points higher than F600 EXR.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Panasonic GH2
60
21.2 bits
11.3 Evs
655 ISO
Fujifilm F600 EXR
40
19.4 bits
10.8 Evs
153 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Panasonic GH2
or the
Fujifilm F600 EXR ,
including hyperfocal distance.
One thing to watch when comparing these two: they have different sensor sizes
(Four Thirds versus 1/2-inch),
so compare them at the same framing rather than the same focal length.
Put the same focal length on the smaller sensor and it will show less depth of
field, not more, because it also crops tighter. The calculator shows the
full frame equivalent focal length for each body so you can match the framing.
