Panasonic GH1 has a
12.0MP Four Thirds (18.89 x 14.48 mm ) sized CMOS sensor and features Venus Engine HD processor. On the other hand, Panasonic GH5 II has a
20.0MP Four Thirds (17.3 x 13 mm ) sized CMOS sensor and features Venus Engine processor.
Panasonic GH5 II's sensor provides 8MP more than Panasonic GH1's sensor, which gives a significant advantage in real life. You can print your images larger or crop more freely.
On the other hand, please keep in mind that Max sensor resolution is not the only determinant of resolving power. Factors such as the optical elements, low pass filter, pixel size and sensor technology also affects the final resolution of the captured image.
One other difference between these two cameras that is worth mentioning is that Panasonic GH5 II's sensor doesn't have an anti-alias (Low-Pass) filter. Removing anti-alias filter increases the sharpness and level of detail but at the same time, it increases the chance of moiré occurring in certain scenes.

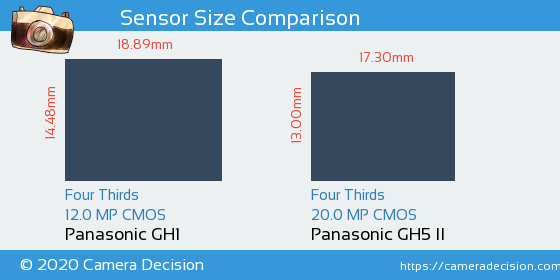

Below you can see the GH1 and GH5 II sensor size comparison.
As seen above, Panasonic GH1 has a 1.2x Larger sensor area than Panasonic GH5 II. Larger sensors give photographer more control on the depth of field and blurry background compared to smaller sensor when shot in same focal length and aperture.
DxOMark Sensor Scores
DxOMark is a benchmark that scientifically assesses image quality of camera sensors. It scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Panasonic GH1 and Panasonic GH5 II sensors have been tested by DxO and the results show that GH5 II has a better overall score of 79, 15 points higher compared to GH1's score of 64.
Model |
Overall |
Color Depth |
Dynamic Range |
Low-light ISO |
Panasonic GH1 |
64 |
21.6 bits |
11.6 Evs |
772 ISO |
Panasonic GH5 II |
79 |
23.7 bits |
13.1 Evs |
1136 ISO |
