Panasonic S1R has a
47.0MP Full frame (36 x 24 mm ) sized CMOS sensor and features Venus Engine processor. On the other hand, Canon R6 has a
20.0MP Full frame (36 x 24 mm ) sized CMOS sensor and features Digic X processor.
Panasonic S1R's sensor provides 27MP more than Canon R6's sensor, which gives a significant advantage in real life. You can print your images larger or crop more freely.
On the other hand, please keep in mind that Max sensor resolution is not the only determinant of resolving power. Factors such as the optical elements, low pass filter, pixel size and sensor technology also affects the final resolution of the captured image.
Another difference between these two cameras is that Panasonic S1R's sensor lacks anti-alias (Low-Pass) filter. Removing anti-alias filter increases the sharpness and level of detail but at the same time, it increases the chance of moiré occurring in certain scenes.

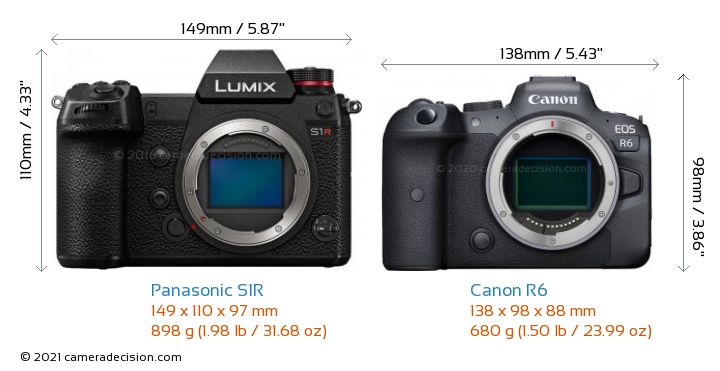

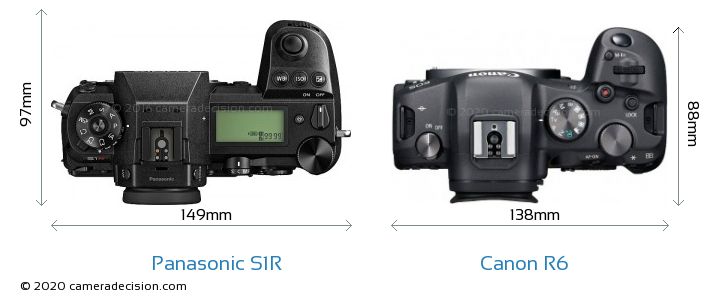

Below you can see the S1R and R6 sensor size comparison.
Sensor Size and Resolution Comparison image of Panasonic S1R and Canon R6 Cameras
Panasonic S1R and Canon R6 have the same sensor sizes so they will provide same level of control over the depth of field when used with same focal length and aperture. On the other hand, since Canon R6 has 138% larger pixel area (43.00µm 2 vs 18.00µm 2 ) compared to Panasonic S1R, it has larger pixel area to collect light hence potential to have less noise in low light / High ISO images.
DxOMark Sensor Scores
Both Panasonic S1R and Canon R6 sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, S1R has scored 100, 10 points higher than R6.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Panasonic S1R
100
26.4 bits
14.1 Evs
3525 ISO
Canon R6
90
24.2 bits
14.3 Evs
3394 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Panasonic S1R
or the
Canon R6 ,
including hyperfocal distance.
