Olympus E-PL6 has a
16.0MP Four Thirds (17.3 x 13 mm ) sized CMOS sensor and features TruePic VI processor. On the other hand, Ricoh GR IIIx has a
24.0MP APS-C (23.5 x 15.6 mm ) sized CMOS sensor .
Ricoh GR IIIx's sensor provides 8MP more than Olympus E-PL6's sensor, which gives a significant advantage in real life. You can print your images larger or crop more freely.
On the other hand, please keep in mind that Max sensor resolution is not the only determinant of resolving power. Factors such as the optical elements, low pass filter, pixel size and sensor technology also affects the final resolution of the captured image.
One other difference between these two cameras that is worth mentioning is that Ricoh GR IIIx's sensor doesn't have an anti-alias (Low-Pass) filter. Removing anti-alias filter increases the sharpness and level of detail but at the same time, it increases the chance of moiré occurring in certain scenes.

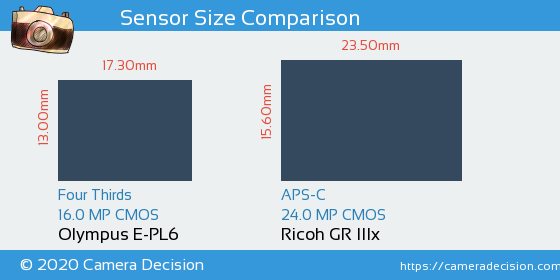

Below you can see the E-PL6 and GR IIIx sensor size comparison.
Sensor Size and Resolution Comparison image of Olympus E-PL6 and Ricoh GR IIIx Cameras
As seen above, Ricoh GR IIIx has a 1.6x Larger sensor area than Olympus E-PL6. Larger sensors give photographer more control on the depth of field and blurry background compared to smaller sensor when shot in same focal length and aperture.
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Olympus E-PL6
or the
Ricoh GR IIIx ,
including hyperfocal distance.
One thing to watch when comparing these two: they have different sensor sizes
(Four Thirds versus APS-C),
so compare them at the same framing rather than the same focal length.
Put the same focal length on the smaller sensor and it will show less depth of
field, not more, because it also crops tighter. The calculator shows the
full frame equivalent focal length for each body so you can match the framing.
