Nikon D7500 has a
21.0MP APS-C (23.5 x 15.7 mm ) sized CMOS sensor and features Expeed 5 processor. On the other hand, Canon M5 has a
24.0MP APS-C (22.3 x 14.9 mm ) sized CMOS sensor and features Digic 7 processor.
Another difference between these two cameras is that Nikon D7500's sensor lacks anti-alias (Low-Pass) filter. Removing anti-alias filter increases the sharpness and level of detail but at the same time, it increases the chance of moiré occurring in certain scenes.

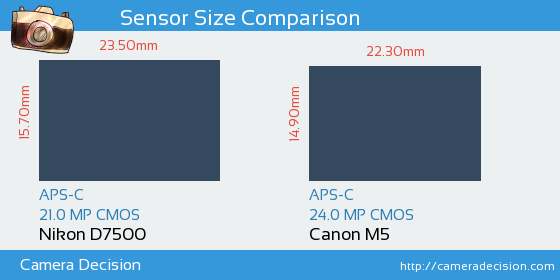

Below you can see the D7500 and M5 sensor size comparison.
As seen above, Nikon D7500 has a 1.1x Larger sensor area than Canon M5. Larger sensors give photographer more control on the depth of field and blurry background compared to smaller sensor when shot in same focal length and aperture.
DxOMark Sensor Scores
Both Nikon D7500 and Canon M5 sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, D7500 has scored 86, 9 points higher than M5.
Model |
Overall |
Color Depth |
Dynamic Range |
Low-light ISO |
Nikon D7500 |
86 |
24.3 bits |
14.0 Evs |
1483 ISO |
Canon M5 |
77 |
23.4 bits |
12.4 Evs |
1262 ISO |
