Both Nikon D5 and Nikon D500 have 21.0 MP resolution sensors but Nikon D5's sensor is Full frame (35.8 x 23.9 mm ) and Nikon D500's sensor is APS-C (23.5 x 15.7 mm ).
Since Nikon D5's has a larger sensor area with the same resolution, this means that it also has a larger pixel area hence better light collecting capacity for a given aperture compared to Nikon D500.
One other difference between these two cameras that is worth mentioning is that Nikon D500's sensor doesn't have an anti-alias (Low-Pass) filter. Removing anti-alias filter increases the sharpness and level of detail but at the same time, it increases the chance of moiré occurring in certain scenes.

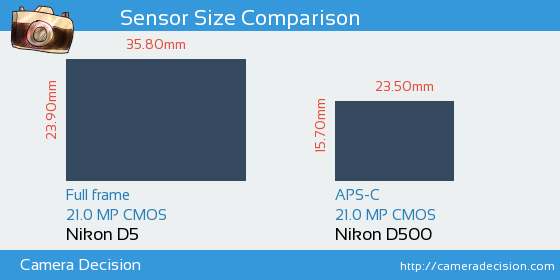

Below you can see the D5 and D500 sensor size comparison.
As seen above, Nikon D5 has a 2.3x Larger sensor area than Nikon D500. Larger sensors give photographer more control on the depth of field and blurry background compared to smaller sensor when shot in same focal length and aperture.
DxOMark Sensor Scores
Both Nikon D5 and Nikon D500 sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, D5 has scored 88, 4 points higher than D500.
Model |
Overall |
Color Depth |
Dynamic Range |
Low-light ISO |
Nikon D5 |
88 |
25.1 bits |
12.3 Evs |
2434 ISO |
Nikon D500 |
84 |
24.1 bits |
14.0 Evs |
1324 ISO |
