Leica M10 has a
24.0MP Full frame (35.8 x 23.9 mm ) sized CMOS sensor and features Maestro II processor. On the other hand, Leica M-E Typ 220 has a
18.0MP Full frame (36 x 24 mm ) sized CCD sensor .
Leica M10's sensor provides 6MP more than Leica M-E Typ 220's sensor, which gives a significant advantage in real life. You can print your images larger or crop more freely.
On the other hand, please keep in mind that Max sensor resolution is not the only determinant of resolving power. Factors such as the optical elements, low pass filter, pixel size and sensor technology also affects the final resolution of the captured image.

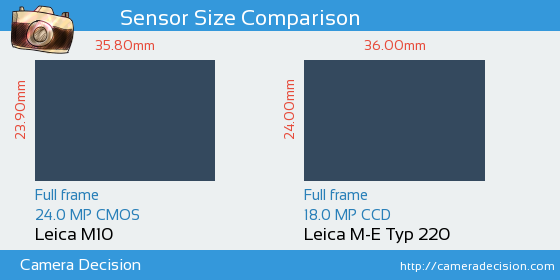

Below you can see the M10 and M-E Typ 220 sensor size comparison.
Sensor Size and Resolution Comparison image of Leica M10 and Leica M-E Typ 220 Cameras
Leica M10 and Leica M-E Typ 220 have almost the same sensor size, so neither of them has any significant advantage over the other in terms of providing control over depth of field when used with the same focal length and aperture.
DxOMark Sensor Scores
Both Leica M10 and Leica M-E Typ 220 sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, M10 has scored 86, 17 points higher than M-E Typ 220.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Leica M10
86
24.4 bits
13.3 Evs
2133 ISO
Leica M-E Typ 220
69
22.7 bits
11.7 Evs
787 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Leica M10
or the
Leica M-E Typ 220 ,
including hyperfocal distance.
