Leica M Typ 240 has a
24.0MP Full frame (36 x 24 mm ) sized CMOS sensor . On the other hand, Leica M-E Typ 220 has a
18.0MP Full frame (36 x 24 mm ) sized CCD sensor .
Leica M Typ 240's sensor provides 6MP more than Leica M-E Typ 220's sensor, which gives a significant advantage in real life. You can print your images larger or crop more freely.
On the other hand, please keep in mind that Max sensor resolution is not the only determinant of resolving power. Factors such as the optical elements, low pass filter, pixel size and sensor technology also affects the final resolution of the captured image.

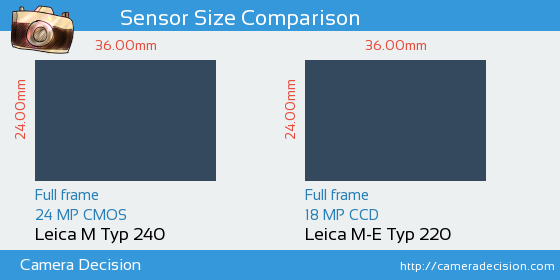

Below you can see the M Typ 240 and M-E Typ 220 sensor size comparison.
Sensor Size and Resolution Comparison image of Leica M Typ 240 and Leica M-E Typ 220 Cameras
Leica M Typ 240 and Leica M-E Typ 220 have the same sensor sizes so they will provide same level of control over the depth of field when used with same focal length and aperture. On the other hand, since Leica M-E Typ 220 has 30% larger pixel area (47.73µm 2 vs 36.50µm 2 ) compared to Leica M Typ 240, it has larger pixel area to collect light hence potential to have less noise in low light / High ISO images.
DxOMark Sensor Scores
Both Leica M Typ 240 and Leica M-E Typ 220 sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, M Typ 240 has scored 84, 15 points higher than M-E Typ 220.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Leica M Typ 240
84
24.0 bits
13.3 Evs
1860 ISO
Leica M-E Typ 220
69
22.7 bits
11.7 Evs
787 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Leica M Typ 240
or the
Leica M-E Typ 220 ,
including hyperfocal distance.
