Size and weight are big decision factors when you are trying to find the ideal camera for your needs.
In this section, we are going to illustrate the Fujifilm X70 and Samsung NX20 side-by-side from the front, back and top in their relative dimensions. Fujifilm X70 has external dimensions of 113 x 64 x 44 mm (4.45 x 2.52 x 1.73″) and weighs 340 g (0.75 lb / 11.99 oz) (including batteries). Samsung NX20 has external dimensions of 122 x 90 x 40 mm (4.8 x 3.54 x 1.57″) and weighs 341 g (0.75 lb / 12.03 oz) (including batteries).

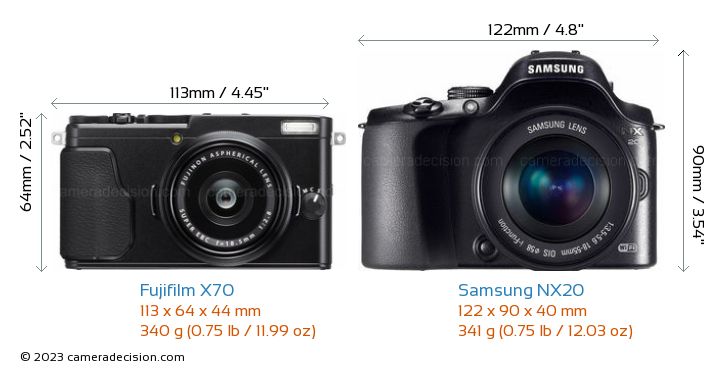

Below you can see the front-view size comparison of the Fujifilm X70 and the Samsung NX20. Fujifilm X70 is 9mm narrower and 26mm shorter than Samsung NX20 but it is also 4mm thicker. As you can tell, actually this is not a fair size comparison since Fujifilm X70 has a built-in lens but Samsung NX20 doesn't. Once you put a lens on NX20, its thickness will increase significantly.
Comparison image of the Fujifilm X70 and the Samsung NX20 Size, Weight and External Dimensions - Front View
Here is the back view size comparison of the Fujifilm X70 and Samsung NX20.
Comparison image of the Fujifilm X70 and the Samsung NX20 Size and Weight - Back View

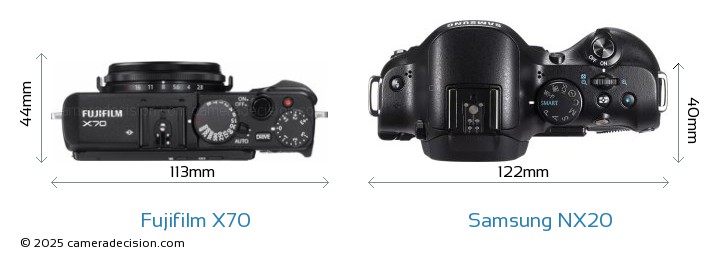

Now lets look at the top view comparison of Fujifilm X70 and Samsung NX20.
Top View Comparison image of the Fujifilm X70 and the Samsung NX20 Size
Weight is another important factor, especially when deciding on a camera that you want to carry with you all day.
Fujifilm X70 is 1g lighter than the Samsung NX20 but we don't think this will make a significant difference.
Again, this comparison may not be very useful in real life as we are comparing the weight of a camera with a built-in lens to the body-only weight of an interchangeable lens camera. Once you put a lens on NX20, the total kit will weigh much higher.
Weather Sealing
Unfortunately neither the Fujifilm X70 nor Samsung NX20 provides any type of weather sealing in their bodies, so you have to give extra care especially when you are shooting outdoors. If weather sealing is a must-have feature for you, check these sections: Top Compact Cameras with Weather Sealing Top Mirrorless Cameras with Weather Sealing
LCD Screen Size and Features
Fujifilm X70 and Samsung NX20's LCD screens have the same diagonal size of 3.00 inches.
Fujifilm X70 features a
Tilting-only screen which is mostly only good for shooting from waist or over-the-head levels. On the other hand, Samsung NX20 sports a
Fully Articulated screen which is more flexible and useful, especially for taking selfies and video.
