Fujifilm X-T200 has a
24.0MP APS-C (23.5 x 15.7 mm ) sized CMOS sensor . On the other hand, Samsung NX500 has a
28.0MP APS-C (23.5 x 15.7 mm ) sized BSI-CMOS sensor and features DRIMe 5 processor.
One other difference between these two cameras that is worth mentioning is that Samsung NX500's sensor doesn't have an anti-alias (Low-Pass) filter. Removing anti-alias filter increases the sharpness and level of detail but at the same time, it increases the chance of moiré occurring in certain scenes.
Below you can see the X-T200 and NX500 sensor size comparison.

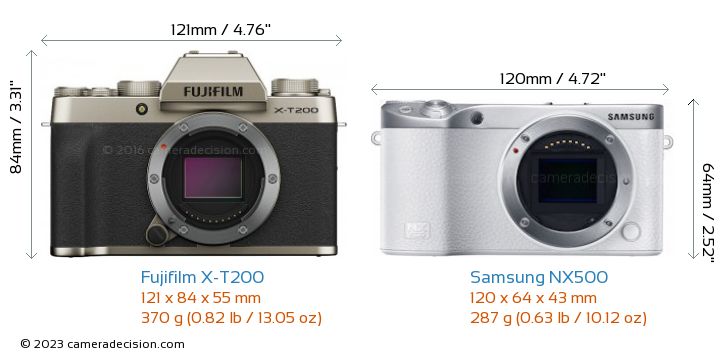

Sensor Size and Resolution Comparison image of Fujifilm X-T200 and Samsung NX500 Cameras
Fujifilm X-T200 and Samsung NX500 have the same sensor sizes so they will provide same level of control over the depth of field when used with same focal length and aperture. On the other hand, since Fujifilm X-T200 has 16% larger pixel area compared to Samsung NX500, it has potential to collect more light on pixel level hence have less noise in low light / High ISO images.
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Fujifilm X-T200
or the
Samsung NX500 ,
including hyperfocal distance.
