Size and weight are big decision factors when you are trying to find the ideal camera for your needs.
In this section, we are going to illustrate the Fujifilm X-T200 and Fujifilm X100F side-by-side from the front, back and top in their relative dimensions. Fujifilm X-T200 has external dimensions of 121 x 84 x 55 mm (4.76 x 3.31 x 2.17″) and weighs 370 g (0.82 lb / 13.05 oz) (including batteries). Fujifilm X100F has external dimensions of 127 x 75 x 52 mm (5 x 2.95 x 2.05″) and weighs 469 g (1.03 lb / 16.54 oz) (including batteries).

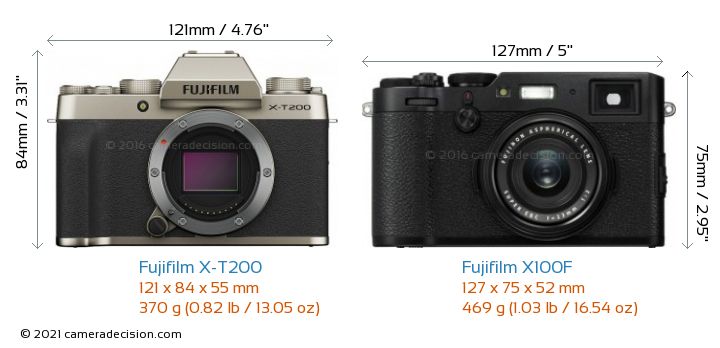

Below you can see the front-view size comparison of the Fujifilm X-T200 and the Fujifilm X100F. Fujifilm X100F is 9mm shorter and 3mm thinner than Fujifilm X-T200 but it is also 6mm wider. As you can tell, actually this is not a fair size comparison since Fujifilm X100F has a built-in lens but Fujifilm X-T200 doesn't. Once you put a lens on X-T200, its thickness will increase significantly.
Here is the back view size comparison of the Fujifilm X-T200 and Fujifilm X100F.

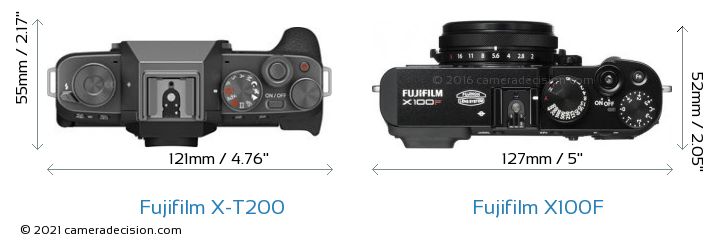

Now lets look at the top view comparison of Fujifilm X-T200 and Fujifilm X100F.
Weight is another important factor, especially when deciding on a camera that you want to carry with you all day.
Fujifilm X-T200 is significantly lighter (99g ) than the Fujifilm X100F which may become a big advantage especially on long walking trips.
Again, this comparison may not be very useful in real life as we are comparing the weight of a camera with a built-in lens to the body-only weight of an interchangeable lens camera. Once you put a lens on X-T200, the total kit will weigh much higher.
Weather Sealing
Unfortunately neither the Fujifilm X-T200 nor Fujifilm X100F provides any type of weather sealing in their bodies, so you have to give extra care especially when you are shooting outdoors. If weather sealing is a must-have feature for you, check these sections: Top Mirrorless Cameras with Weather Sealing Top Compact Cameras with Weather Sealing
LCD Screen Size and Features
Fujifilm X-T200's 3.50" LCD screen is slightly larger than Fujifilm X100F's 3 screen.
Moreover, Fujifilm X-T200 sports a
Fully Articulated screen which you can change the angle and position of the screen almost freely, making it possible to shoot from waist or over-the-head levels, and especially very useful for shooting selfies and video. On the other hand, Fujifilm X100F has a fixed type screen which provides almost no flexibility in shooting positions compared to X-T200.
