Canon V1 has a
22.0MP Type 1.4 (18.4 x 12.3 mm ) sized BSI-CMOS sensor and features DIGIC X processor. On the other hand, Ricoh GR IIIx HDF has a
24.0MP APS-C (23.5 x 15.6 mm ) sized CMOS sensor .
One other difference between these two cameras that is worth mentioning is that Ricoh GR IIIx HDF's sensor doesn't have an anti-alias (Low-Pass) filter. Removing anti-alias filter increases the sharpness and level of detail but at the same time, it increases the chance of moiré occurring in certain scenes.

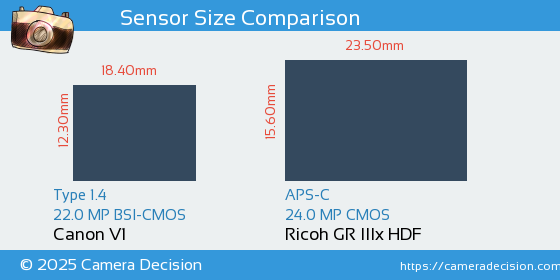

Below you can see the V1 and GR IIIx HDF sensor size comparison.
Sensor Size and Resolution Comparison image of Canon V1 and Ricoh GR IIIx HDF Cameras
As seen above, Ricoh GR IIIx HDF has a 1.6x Larger sensor area than Canon V1. Larger sensors give photographer more control on the depth of field and blurry background compared to smaller sensor when shot in same focal length and aperture.
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Canon V1
or the
Ricoh GR IIIx HDF ,
including hyperfocal distance.
One thing to watch when comparing these two: they have different sensor sizes
(Type 1.4 versus APS-C),
so compare them at the same framing rather than the same focal length.
Put the same focal length on the smaller sensor and it will show less depth of
field, not more, because it also crops tighter. The calculator shows the
full frame equivalent focal length for each body so you can match the framing.
