Size and weight are big decision factors when you are trying to find the ideal camera for your needs.
In this section, we are going to illustrate the Canon SX740 HS and Canon 160 side-by-side from the front, back and top in their relative dimensions. Canon SX740 HS has external dimensions of 110 x 64 x 40 mm (4.33 x 2.52 x 1.57″) and weighs 299 g (0.66 lb / 10.55 oz) (including batteries). Canon 160 has external dimensions of 95 x 54 x 22 mm (3.74 x 2.13 x 0.87″) and weighs 127 g (0.28 lb / 4.48 oz) (including batteries).

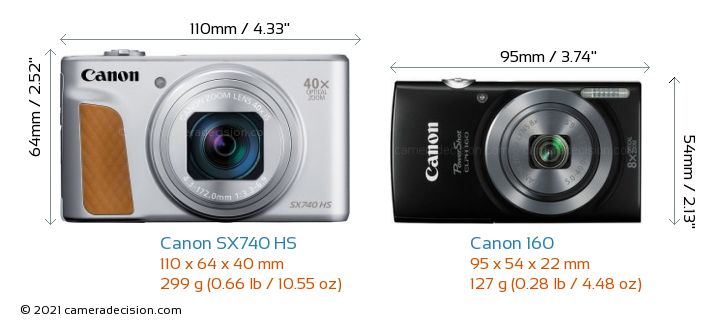

Below you can see the front-view size comparison of the Canon SX740 HS and the Canon 160. Canon 160 is clearly the smaller of the two cameras. Its body is 15mm narrower, 10mm shorter and 18mm thinner than Canon SX740 HS.

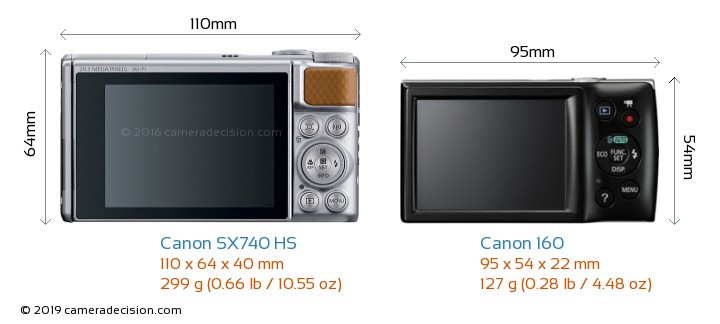

Here is the back view size comparison of the Canon SX740 HS and Canon 160.

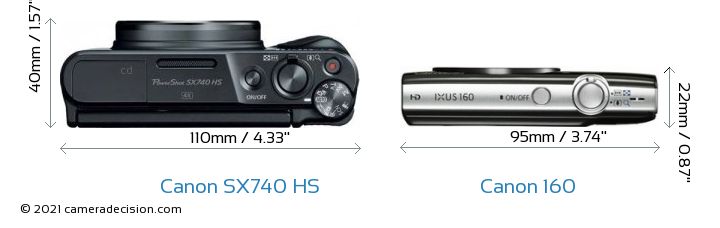

Now lets look at the top view comparison of Canon SX740 HS and Canon 160.
Weight is another important factor, especially when deciding on a camera that you want to carry with you all day.
Canon 160 is significantly lighter (172g ) than the Canon SX740 HS which may become a big advantage especially on long walking trips.
Weather Sealing
Unfortunately neither the Canon PowerShot SX740 HS nor Canon PowerShot ELPH 160 (IXUS 160) provides any type of weather sealing in their bodies, so you have to give extra care especially when you are shooting outdoors. If weather sealing is a must-have feature for you, check these sections: Top Compact Cameras with Weather Sealing
LCD Screen Size and Features
Canon SX740 HS's 3.00" LCD screen is slightly larger than Canon 160's 2.7 screen.
In addition to the size advantage, Canon SX740 HS LCD screen also has a
Tilting feature where you can change the angle of the screen to make it easier to shoot from waist or over-the-head levels. On the other hand, Canon 160 has a fixed type screen which provides less flexibility in shooting positions compared to SX740 HS.
