Canon SX60 HS has a
16.0MP 1/2.3 (6.17 x 4.55 mm ) sized BSI-CMOS sensor and features DIGIC 6 processor. On the other hand, Panasonic FZ200 has a
12.0MP 1/2.3-inch (6.17 x 4.55 mm ) sized CMOS sensor and features Venus Engine VII FHD processor.

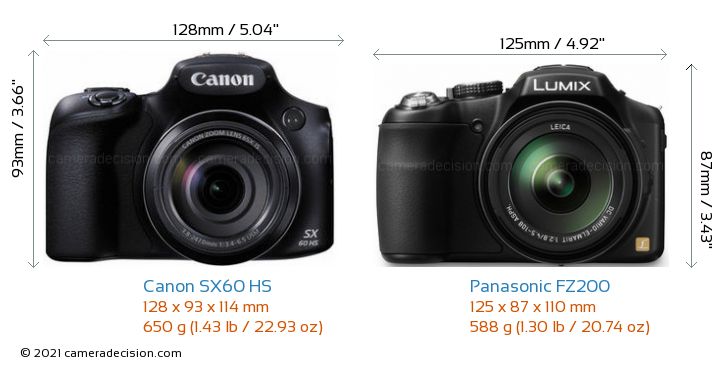

Below you can see the SX60 HS and FZ200 sensor size comparison.
Sensor Size and Resolution Comparison image of Canon SX60 HS and Panasonic FZ200 Cameras
Canon SX60 HS and Panasonic FZ200 have the same sensor sizes so they will provide same level of control over the depth of field when used with same focal length and aperture. On the other hand, since Panasonic FZ200 has 18% larger pixel area (2.34µm 2 vs 1.98µm 2 ) compared to Canon SX60 HS, it has larger pixel area to collect light hence potential to have less noise in low light / High ISO images.
DxOMark Sensor Scores
Both Canon SX60 HS and Panasonic FZ200 sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, SX60 HS has scored 39, 2 points higher than FZ200.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Canon SX60 HS
39
19.2 bits
10.1 Evs
127 ISO
Panasonic FZ200
37
19.1 bits
10.8 Evs
114 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Canon SX60 HS
or the
Panasonic FZ200 ,
including hyperfocal distance.
One thing to watch when comparing these two: they have different sensor sizes
(1/2.3 versus 1/2.3-inch),
so compare them at the same framing rather than the same focal length.
Put the same focal length on the smaller sensor and it will show less depth of
field, not more, because it also crops tighter. The calculator shows the
full frame equivalent focal length for each body so you can match the framing.
