Canon S110 has a
12.0MP 1/1.7-inch (7.44 x 5.58 mm ) sized CMOS sensor and features Digic 5 processor. On the other hand, Panasonic LX5 has a
10.0MP 1/1.63-inch (8.07 x 5.56 mm ) sized CCD sensor and features Venus Engine FHD processor.

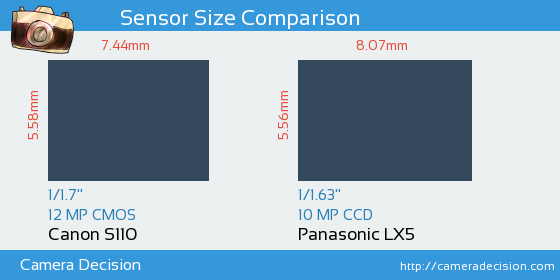

Below you can see the S110 and LX5 sensor size comparison.
Sensor Size and Resolution Comparison image of Canon S110 and Panasonic LX5 Cameras
Canon S110 and Panasonic LX5 have almost the same sensor size, so neither of them has any significant advantage over the other in terms of providing control over depth of field when used with the same focal length and aperture.
DxOMark Sensor Scores
Both Canon S110 and Panasonic LX5 sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, S110 has scored 48, 7 points higher than LX5.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Canon S110
48
20.6 bits
11.2 Evs
168 ISO
Panasonic LX5
41
19.6 bits
10.8 Evs
132 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Canon S110
or the
Panasonic LX5 ,
including hyperfocal distance.
One thing to watch when comparing these two: they have different sensor sizes
(1/1.7-inch versus 1/1.63-inch),
so compare them at the same framing rather than the same focal length.
Put the same focal length on the smaller sensor and it will show less depth of
field, not more, because it also crops tighter. The calculator shows the
full frame equivalent focal length for each body so you can match the framing.
