Size and weight are big decision factors when you are trying to find the ideal camera for your needs.
In this section, we are going to illustrate the Canon G5 X and Panasonic XS1 side-by-side from the front, back and top in their relative dimensions. Canon G5 X has external dimensions of 112 x 76 x 44 mm (4.41 x 2.99 x 1.73″) and weighs 353 g (0.78 lb / 12.45 oz) (including batteries). Panasonic XS1 has external dimensions of 94 x 54 x 14 mm (3.7 x 2.13 x 0.55″) and weighs 103 g (0.23 lb / 3.63 oz) (including batteries).

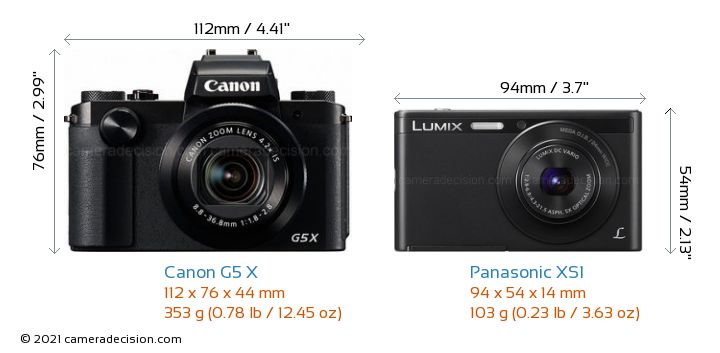

Below you can see the front-view size comparison of the Canon G5 X and the Panasonic XS1. Panasonic XS1 is clearly the smaller of the two cameras. Its body is 18mm narrower, 22mm shorter and 30mm thinner than Canon G5 X.
Here is the back view size comparison of the Canon G5 X and Panasonic XS1.
Now lets look at the top view comparison of Canon G5 X and Panasonic XS1.
Weight is another important factor, especially when deciding on a camera that you want to carry with you all day.
Panasonic XS1 is significantly lighter (250g ) than the Canon G5 X which may become a big advantage especially on long walking trips.
Weather Sealing
Unfortunately neither the Canon PowerShot G5 X nor Panasonic Lumix DMC-XS1 provides any type of weather sealing in their bodies, so you have to give extra care especially when you are shooting outdoors. If weather sealing is a must-have feature for you, check these sections: Top Compact Cameras with Weather Sealing
LCD Screen Size and Features
Canon G5 X's 3.00" LCD screen is slightly larger than Panasonic XS1's 2.7" screen.
Moreover, Canon G5 X sports a
Fully Articulated screen which you can change the angle and position of the screen almost freely, making it possible to shoot from waist or over-the-head levels, and especially very useful for shooting selfies and video. On the other hand, Panasonic XS1 has a fixed type screen which provides almost no flexibility in shooting positions compared to G5 X.
