Canon R6 has a
20.0MP Full frame (36 x 24 mm ) sized CMOS sensor and features Digic X processor. On the other hand, Leica M9-P has a
18.0MP Full frame (36 x 24 mm ) sized CCD sensor .
One other difference between these two cameras that is worth mentioning is that Leica M9-P's sensor doesn't have an anti-alias (Low-Pass) filter. Removing anti-alias filter increases the sharpness and level of detail but at the same time, it increases the chance of moiré occurring in certain scenes.

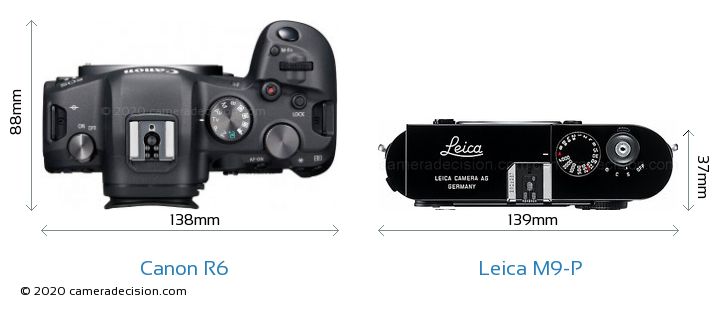

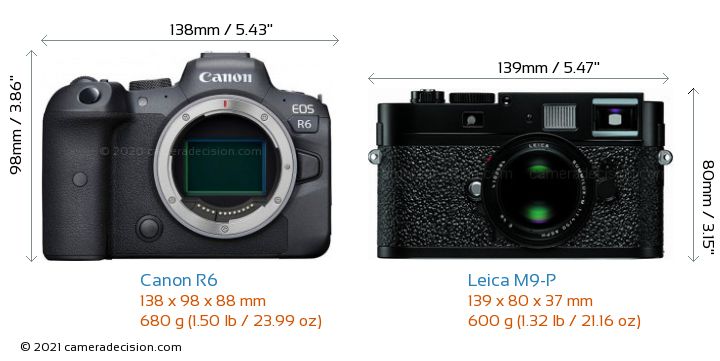

Below you can see the R6 and M9-P sensor size comparison.
Sensor Size and Resolution Comparison image of Canon R6 and Leica M9-P Cameras
Canon R6 and Leica M9-P have the same sensor sizes so they will provide same level of control over the depth of field when used with same focal length and aperture. On the other hand, since Leica M9-P has 10% larger pixel area (47.73µm 2 vs 43.00µm 2 ) compared to Canon R6, it has larger pixel area to collect light hence potential to have less noise in low light / High ISO images.
DxOMark Sensor Scores
Both Canon R6 and Leica M9-P sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, R6 has scored 90, 22 points higher than M9-P.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Canon R6
90
24.2 bits
14.3 Evs
3394 ISO
Leica M9-P
68
22.5 bits
11.6 Evs
854 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Canon R6
or the
Leica M9-P ,
including hyperfocal distance.
