Canon R5 has a
45.0MP Full frame (36 x 24 mm ) sized CMOS sensor and features Digic X processor. On the other hand, Canon 5DS has a
51.0MP Full frame (36 x 24 mm ) sized CMOS sensor and features Dual DIGIC 6 processor.
Canon 5DS's sensor provides 6MP more than Canon R5's sensor, which gives a significant advantage in real life. You can print your images larger or crop more freely.
On the other hand, please keep in mind that Max sensor resolution is not the only determinant of resolving power. Factors such as the optical elements, low pass filter, pixel size and sensor technology also affects the final resolution of the captured image.

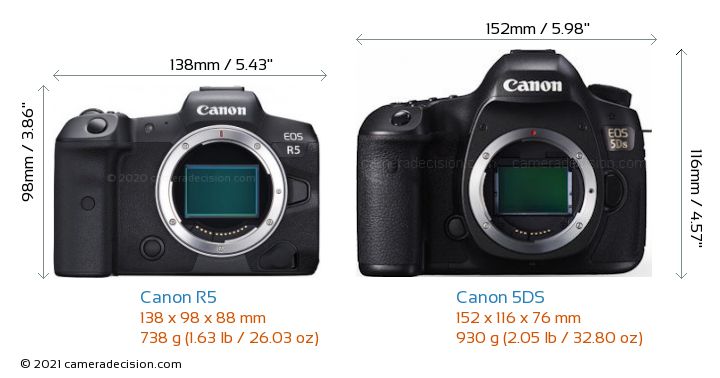

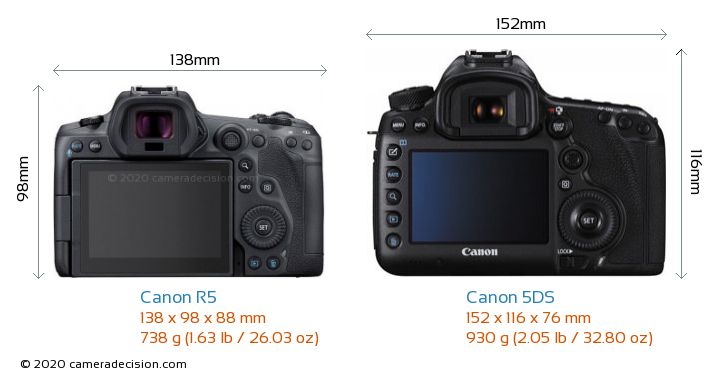

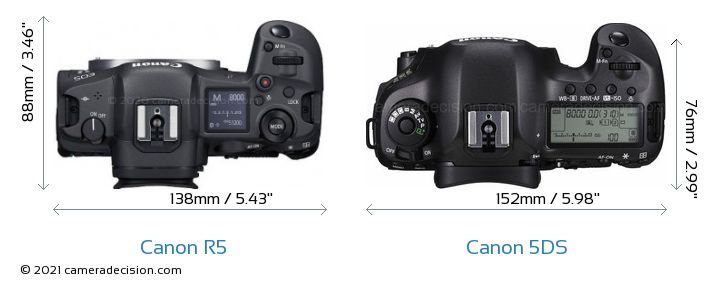

Below you can see the R5 and 5DS sensor size comparison.
Canon R5 and Canon 5DS have the same sensor sizes so they will provide same level of control over the depth of field when used with same focal length and aperture. On the other hand, since Canon R5 has 12% larger pixel area compared to Canon 5DS, it has potential to collect more light on pixel level hence have less noise in low light / High ISO images.
DxOMark Sensor Scores
Both Canon R5 and Canon 5DS sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, R5 has scored 95, 8 points higher than 5DS.
Model |
Overall |
Color Depth |
Dynamic Range |
Low-light ISO |
Canon R5 |
95 |
25.3 bits |
14.6 Evs |
3042 ISO |
Canon 5DS |
87 |
24.7 bits |
12.4 Evs |
2381 ISO |
