Canon R3 has a
24.0MP Full frame (36 x 24 mm ) sized Stacked CMOS sensor and features Digic X processor. On the other hand, Canon 5DS has a
51.0MP Full frame (36 x 24 mm ) sized CMOS sensor and features Dual DIGIC 6 processor.
Canon 5DS's sensor provides 27MP more than Canon R3's sensor, which gives a significant advantage in real life. You can print your images larger or crop more freely.
On the other hand, please keep in mind that Max sensor resolution is not the only determinant of resolving power. Factors such as the optical elements, low pass filter, pixel size and sensor technology also affects the final resolution of the captured image.

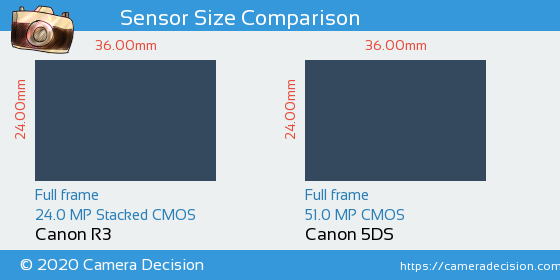

Below you can see the R3 and 5DS sensor size comparison.
Sensor Size and Resolution Comparison image of Canon R3 and Canon 5DS Cameras
Canon R3 and Canon 5DS have the same sensor sizes so they will provide same level of control over the depth of field when used with same focal length and aperture. On the other hand, since Canon R3 has 109% larger pixel area compared to Canon 5DS, it has potential to collect more light on pixel level hence have less noise in low light / High ISO images.
DxOMark Sensor Scores
Both Canon R3 and Canon 5DS sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, R3 has scored 96, 9 points higher than 5DS.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Canon R3
96
25.0 bits
14.7 Evs
4086 ISO
Canon 5DS
87
24.7 bits
12.4 Evs
2381 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Canon R3
or the
Canon 5DS ,
including hyperfocal distance.
