Size and weight are big decision factors when you are trying to find the ideal camera for your needs.
In this section, we are going to illustrate the Canon R10 and Leica TL2 side-by-side from the front, back and top in their relative dimensions. Canon R10 has external dimensions of 122.5 x 87.8 x 83.4mm (4.82 x 3.46 x 3.28 and weighs 426 g (0.94 lb / 15.14 oz) (including batteries). Leica TL2 has external dimensions of 134 x 69 x 33 mm (5.28 x 2.72 x 1.3″) and weighs 399 g (0.88 lb / 14.07 oz) (including batteries).

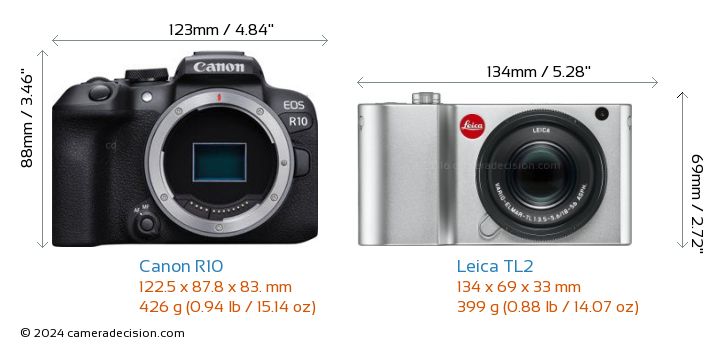

Below you can see the front-view size comparison of the Canon R10 and the Leica TL2. Leica TL2 is 19mm shorter and 50mm thinner than Canon R10 but it is also 11mm wider.
Comparison image of the Canon R10 and the Leica TL2 Size, Weight and External Dimensions - Front View

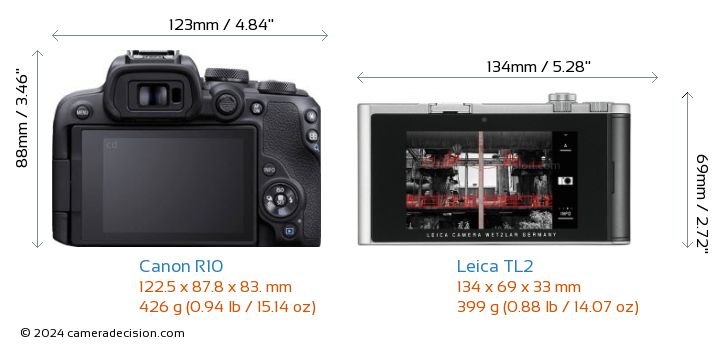

Here is the back view size comparison of the Canon R10 and Leica TL2.
Comparison image of the Canon R10 and the Leica TL2 Size and Weight - Back View

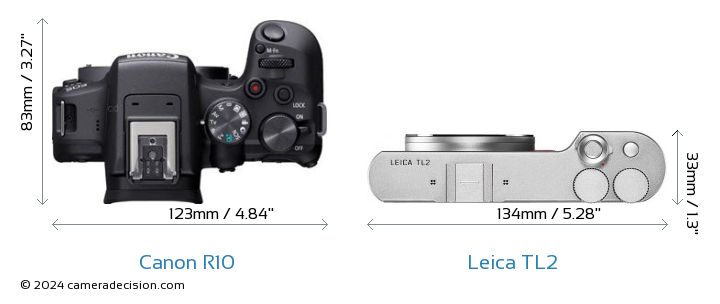

Now lets look at the top view comparison of Canon R10 and Leica TL2.
Top View Comparison image of the Canon R10 and the Leica TL2 Size
Weight is another important factor, especially when deciding on a camera that you want to carry with you all day.
Leica TL2 is 27g lighter than the Canon R10 but we don't think this will make a significant difference.

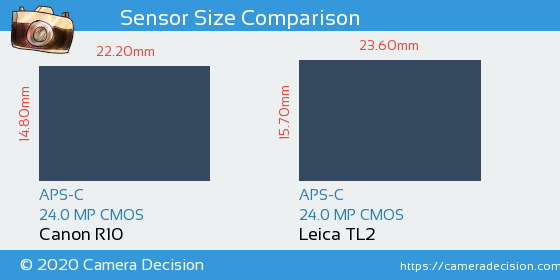

Also keep in mind that body weight is not the only deciding factor when comparing two interchangeable camera bodies, you also have to take into account the lenses that you will be using with these bodies. Since both Canon R10 and Leica TL2 have the same APS-C sized sensor, their lenses for a similar focal length and aperture will be similar in size and weight.
Weather Sealing
Unfortunately neither the Canon EOS R10 nor Leica TL2 provides any type of weather sealing in their bodies, so you have to give extra care especially when you are shooting outdoors. If weather sealing is a must-have feature for you, check these sections: Top Mirrorless Cameras with Weather Sealing
LCD Screen Size and Features
Leica TL2's 3.70" LCD screen is slightly larger than Canon R10's 3″ screen.
On the other hand, Canon R10 sports a
Fully Articulated screen which you can change the angle and position of the screen almost freely, making it possible to shoot from waist or over-the-head levels, and especially very useful for shooting selfies and video. On the other hand, Leica TL2 has a fixed type screen which provides almost no flexibility in shooting positions compared to R10.
