Size and weight are big decision factors when you are trying to find the ideal camera for your needs.
In this section, we are going to illustrate the Canon M6 and Fujifilm X-T200 side-by-side from the front, back and top in their relative dimensions. Canon M6 has external dimensions of 112 x 68 x 45 mm (4.41 x 2.68 x 1.77″) and weighs 390 g (0.86 lb / 13.76 oz) (including batteries). Fujifilm X-T200 has external dimensions of 121 x 84 x 55 mm (4.76 x 3.31 x 2.17″) and weighs 370 g (0.82 lb / 13.05 oz) (including batteries).
Below you can see the front-view size comparison of the Canon M6 and the Fujifilm X-T200. Canon M6 is clearly the smaller of the two cameras. Its body is 9mm narrower, 16mm shorter and 10mm thinner than Fujifilm X-T200.

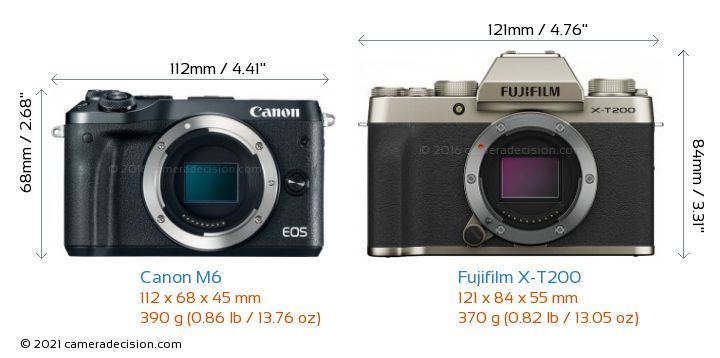

Comparison image of the Canon M6 and the Fujifilm X-T200 Size, Weight and External Dimensions - Front View
Here is the back view size comparison of the Canon M6 and Fujifilm X-T200.

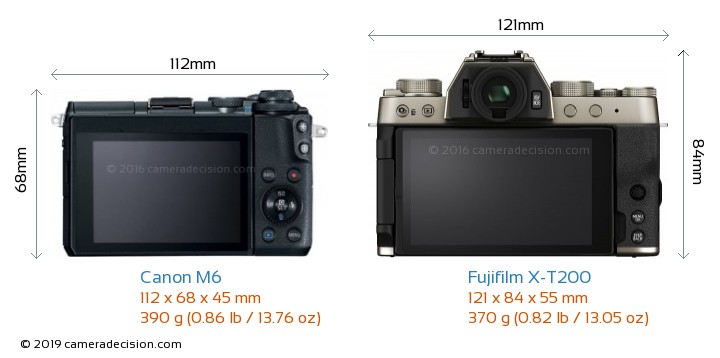

Comparison image of the Canon M6 and the Fujifilm X-T200 Size and Weight - Back View
Now lets look at the top view comparison of Canon M6 and Fujifilm X-T200.

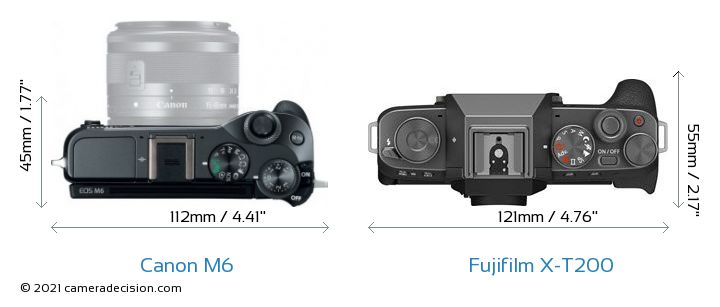

Top View Comparison image of the Canon M6 and the Fujifilm X-T200 Size
Weight is another important factor, especially when deciding on a camera that you want to carry with you all day.
Fujifilm X-T200 is 20g lighter than the Canon M6 but we don't think this will make a significant difference.

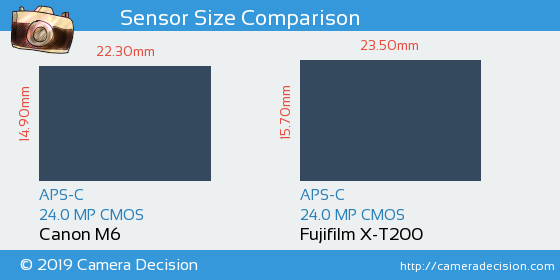

Also keep in mind that body weight is not the only deciding factor when comparing two interchangeable camera bodies, you also have to take into account the lenses that you will be using with these bodies. Since both Canon M6 and Fujifilm X-T200 have the same APS-C sized sensor, their lenses for a similar focal length and aperture will be similar in size and weight.
Weather Sealing
Unfortunately neither the Canon EOS M6 nor Fujifilm X-T200 provides any type of weather sealing in their bodies, so you have to give extra care especially when you are shooting outdoors. If weather sealing is a must-have feature for you, check these sections: Top Mirrorless Cameras with Weather Sealing
LCD Screen Size and Features
Fujifilm X-T200's 3.50" LCD screen is slightly larger than Canon M6's 3 screen.
