Canon 700D has a
18.0MP APS-C (22.3 x 14.9 mm ) sized CMOS sensor and features Digic 5 processor. On the other hand, Pentax Q10 has a
12.0MP 1/2.3-inch (6.17 x 4.55 mm ) sized CMOS sensor .
Canon 700D's sensor provides 6MP more than Pentax Q10's sensor, which gives a significant advantage in real life. You can print your images larger or crop more freely.
On the other hand, please keep in mind that Max sensor resolution is not the only determinant of resolving power. Factors such as the optical elements, low pass filter, pixel size and sensor technology also affects the final resolution of the captured image.

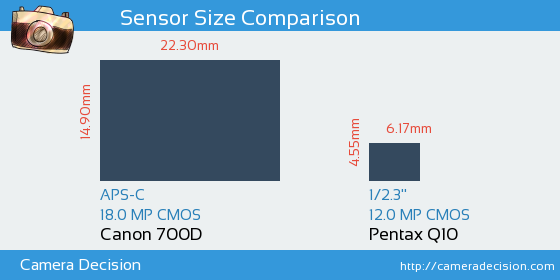

Below you can see the 700D and Q10 sensor size comparison.
Sensor Size and Resolution Comparison image of Canon 700D and Pentax Q10 Cameras
As seen above, Canon 700D has a 11.8x Larger sensor area than Pentax Q10. Larger sensors give photographer more control on the depth of field and blurry background compared to smaller sensor when shot in same focal length and aperture.
DxOMark Sensor Scores
Both Canon 700D and Pentax Q10 sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, 700D has scored 61, 12 points higher than Q10.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Canon 700D
61
21.7 bits
11.2 Evs
681 ISO
Pentax Q10
49
21.1 bits
10.9 Evs
183 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Canon 700D
or the
Pentax Q10 ,
including hyperfocal distance.
One thing to watch when comparing these two: they have different sensor sizes
(APS-C versus 1/2.3-inch),
so compare them at the same framing rather than the same focal length.
Put the same focal length on the smaller sensor and it will show less depth of
field, not more, because it also crops tighter. The calculator shows the
full frame equivalent focal length for each body so you can match the framing.
